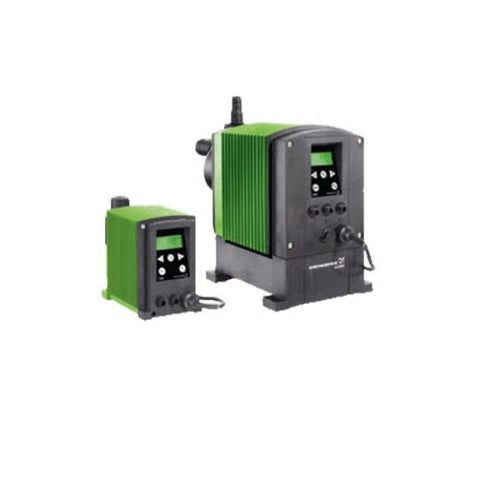

Grundfos 96529116 DME Digital Dosing Pump
Grundfos 96529116 DME Digital Dosing Pump
Create a free account and save 5% on this order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability
The Grundfos 96529116 is a DME 375-10 digital dosing pump rated for up to 375 l/h (99 GPH) at 10 bar (145 psi) — large-capacity digital metering with the accuracy of Grundfos' variable-speed drive concept.
The liquid end runs a polypropylene dosing head and housing, FKM seal, fabric-reinforced EPDM diaphragm with PTFE coating (124 mm diameter), and glass valve balls, with 1-1/4" inlet and outlet connections. Gear-driven, IP65-rated, with universal 100–240 V, 50/60 Hz supply. Turndown is 1:800 with ±1% repeatable accuracy; maximum liquid temperature 122°F (50°C); viscosity up to 3,000 cps with spring-loaded valves (200 cps without). Standard control variant.
Right for high-volume chemical transfer-and-dose duty — coagulant, polymer carrier streams, and similar. Send us your application details and we'll point you to the right part number.
KAD Pumps & Parts is Texas-based and ships from the US — fast dispatch and US support before you buy.
Specifications
| Brand | Grundfos |
|---|---|
| Model / MPN | 96529116 (DME 375-10, Standard control) |
| Pump type | Digital diaphragm dosing (metering) pump |
| Max flow | 375 l/h (99 GPH) |
| Max pressure | 10 bar (145 psi) |
| Dosing head / housing | Polypropylene |
| Seal | FKM |
| Diaphragm | Fabric-reinforced EPDM, PTFE-coated, 124 mm |
| Valve balls | Glass |
| Connections | 1-1/4" inlet / 1-1/4" outlet |
| Turndown | 1:800, ±1% repeatable |
| Max liquid temperature | 122°F (50°C) |
| Max viscosity | 3,000 cps w/ spring-loaded valves; 200 cps without |
| Enclosure / power | IP65; 100–240 V, 50/60 Hz |
Datasheet: Grundfos DME data booklet (PDF)
