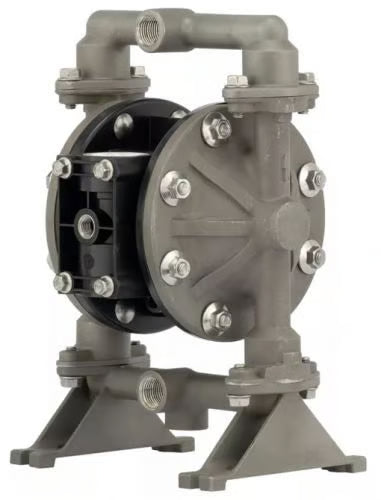

ARO PD05R-AAS-PGG-B — 1/2" Aluminum Diaphragm Pump, Nitrile Diaphragm
ARO PD05R-AAS-PGG-B — 1/2" Aluminum Diaphragm Pump, Nitrile Diaphragm
Create a free account and save 5% on this order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability
The ARO PD05R-AAS-PGG-B is a 1/2" air-operated double-diaphragm (AODD) pump from ARO's compact 1/2" metallic series — self-priming, run-dry capable, and rated to about 12 GPM on compressed air up to 100 psi.
This build pairs Aluminum fluid caps and manifold with Polypropylene seats, Nitrile check balls and Nitrile diaphragms. The air motor uses a polypropylene center section. Nitrile (Buna-N) is the standard choice for petroleum-based fluids — fuels, diesel, motor and hydraulic oils, and many solvents. Bolted construction keeps the fluid path leak-tight, and ARO's patented unbalanced air valve is designed to resist stalling and ice-up.
It is a sensible fit for general transfer in water treatment, wastewater, chemical feed and industrial maintenance. Not sure this build suits your fluid? Send us your application details and we'll point you to the right part number.
KAD is a Texas-based seller — order online, ship from the US with a short lead time, and reach US-based support if you have a sizing or compatibility question before you buy.
Specifications
| Brand | ARO (Ingersoll Rand) |
| Model / MPN | PD05R-AAS-PGG-B |
| Pump type | Air-operated double diaphragm (AODD) |
| Port / inlet size | 1/2 in |
| Max flow | 12.0 GPM (45.4 LPM) |
| Max fluid pressure | 100 psi (6.9 bar) |
| Max air inlet pressure | 100 psi (6.9 bar) |
| Solids handling | 3/32 in (2.4 mm) |
| Diaphragm material | Nitrile |
| Ball (check valve) material | Nitrile |
| Seat material | Polypropylene |
| Fluid caps & manifold | Aluminum (with polypropylene center section) |
| Max fluid temperature | Up to 175°F (79°C) — limited by the polypropylene wetted path |
| Sound level | ~75.0 dB(A) |
| Weight | ~8.0 lb (3.7 kg) |
| Displacement | 0.039 gal (0.15 L) per cycle |
Datasheet: ARO PD05A / PD05R-XXS-XXX-B — Sales & Engineering Data (PDF)
