ARO PD05P-BRS-PAA-B — 1/2" Polypropylene Diaphragm Pump, Santoprene Diaphragm
ARO PD05P-BRS-PAA-B — 1/2" Polypropylene Diaphragm Pump, Santoprene Diaphragm
Create a free account and save 5% on this order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability

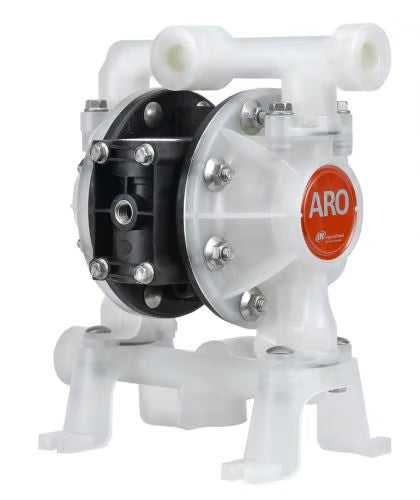

The ARO PD05P-BRS-PAA-B is a 1/2" air-operated double-diaphragm (AODD) pump from ARO's compact 1/2" non-metallic series — self-priming, run-dry capable, and rated to about 14.4 GPM on compressed air up to 100 psi.
This build runs an all-polypropylene wetted path — fluid caps, manifold and seats — with Santoprene diaphragms and Santoprene check balls. Santoprene is a tough, value-oriented elastomer with good general chemical compatibility, well suited to water-based and mildly aggressive fluids. Bolted construction keeps the fluid path leak-tight, and ARO's patented unbalanced air valve is designed to resist stalling and ice-up.
It is a sensible fit for general transfer in water treatment, wastewater, chemical feed and industrial maintenance. Not sure this build suits your fluid? Send us your application details and we'll point you to the right part number.
KAD is a Texas-based seller — order online, ship from the US with a short lead time, and reach US-based support if you have a sizing or compatibility question before you buy.
Specifications
| Brand | ARO (Ingersoll Rand) |
| Model / MPN | PD05P-BRS-PAA-B |
| Pump type | Air-operated double diaphragm (AODD) |
| Port / inlet size | 1/2 in |
| Max flow | 14.4 GPM (54.5 LPM) |
| Max fluid pressure | 100 psi (6.9 bar) |
| Max air inlet pressure | 100 psi (6.9 bar) |
| Solids handling | 3/32 in (2.4 mm) |
| Diaphragm material | Santoprene |
| Ball (check valve) material | Santoprene |
| Seat material | Polypropylene |
| Fluid caps & manifold | Polypropylene |
| Max fluid temperature | Up to 175°F (79°C) — limited by the polypropylene wetted path |
| Sound level | ~75.0 dB(A) |
| Weight | ~5.4 lb (2.5 kg) |
| Displacement | 0.039 gal (0.15 L) per cycle |
Datasheet: ARO PD05P-XXS-XXX-B — Sales & Engineering Data (PDF)
