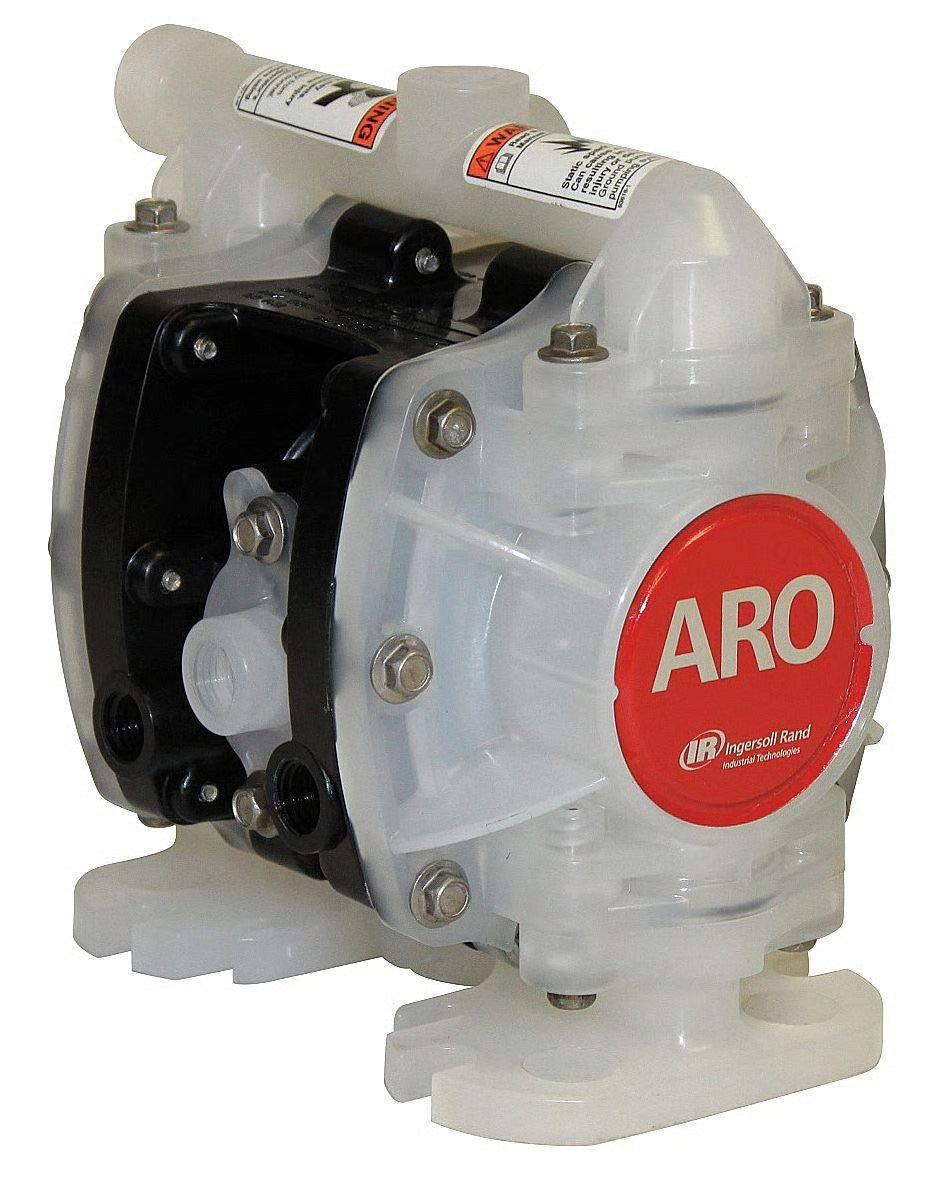

ARO PD01E-HDS-DTT-A — 1/4" Acetal Diaphragm Pump, PTFE Diaphragm
ARO PD01E-HDS-DTT-A — 1/4" Acetal Diaphragm Pump, PTFE Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability
The ARO PD01E-HDS-DTT-A is a 1/4" air-operated double-diaphragm (AODD) pump from ARO's compact 1/4" non-metallic series — self-priming, run-dry capable, and rated to about 5.3 GPM on compressed air up to 125 psi.
This build pairs Acetal fluid caps and manifold with Acetal seats, PTFE check balls and PTFE / Santoprene diaphragms. PTFE gives the broadest chemical compatibility in the line — the build to reach for with corrosive acids, caustics and solvents that attack rubber elastomers. Bolted construction keeps the fluid path leak-tight, and ARO's patented unbalanced air valve is designed to resist stalling and ice-up.
It suits dosing, metering, chemical feed and low-volume transfer where space and air supply are limited. Not sure this build suits your fluid? Send us your application details and we'll point you to the right part number.
KAD is a Texas-based seller — order online, ship from the US with a short lead time, and reach US-based support if you have a sizing or compatibility question before you buy.
Specifications
| Brand | ARO (Ingersoll Rand) |
| Model / MPN | PD01E-HDS-DTT-A |
| Pump type | Air-operated double diaphragm (AODD) |
| Port / inlet size | 1/4 in (hybrid NPTF/BSPT) |
| Max flow | 5.3 GPM (20 LPM) |
| Max fluid pressure | 125 psi (8.6 bar) |
| Max air inlet pressure | 125 psi (8.6 bar) |
| Solids handling | 1/16 in (1.6 mm) |
| Diaphragm material | PTFE / Santoprene |
| Ball (check valve) material | PTFE |
| Seat material | Acetal |
| Fluid caps & manifold | Acetal (with groundable polypropylene center section) |
| Max fluid temperature | Up to 180°F (82°C) — limited by the acetal wetted path |
| Sound level | ~62.3 dB(A) |
| Weight | ~3.5 lb (1.6 kg) |
| Displacement | 0.019 gal (0.072 L) per cycle |
Datasheet: ARO EXPert & Compact Series Air-Operated Diaphragm Pumps — Catalog (PDF)
