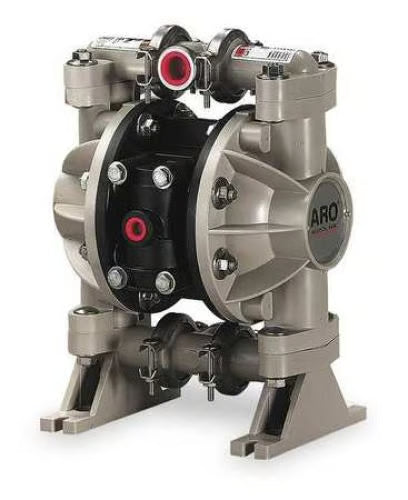

ARO 666053-3EB — 1/2" Polypropylene Diaphragm Pump, Santoprene Diaphragm
ARO 666053-3EB — 1/2" Polypropylene Diaphragm Pump, Santoprene Diaphragm
Create a free account and save 5% on this order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability
The ARO 666053-3EB is a 1/2" air-operated double-diaphragm (AODD) pump from ARO's compact 1/2" non-metallic series — self-priming, run-dry capable, and rated to about 13 GPM running on plant air up to 100 psi.
This build pairs an all-polypropylene wetted path — fluid caps, manifold and seats — with Santoprene diaphragms and Santoprene check balls. That combination is a practical, value-oriented choice for water-based and mildly aggressive fluids, giving good general chemical compatibility and flexible-elastomer service life without the cost of PTFE. Bolted construction keeps the fluid path leak-tight, and ARO's unbalanced air valve is designed to resist stalling.
It is a sensible fit for general transfer duty in water treatment, wastewater, and industrial maintenance — anywhere a dependable 1/2" AODD running on shop air does the job. Need a different diaphragm or ball material for your fluid? The same body is offered in several elastomers; send us your application details and we'll point you to the right part number.
KAD is a Texas-based seller — order online, ship from the US with a short lead time, and reach US-based support if you have a sizing or compatibility question before you buy.
Specifications
| Brand | ARO (Ingersoll Rand) |
| Model / MPN | 666053-3EB |
| Pump type | Air-operated double diaphragm (AODD) |
| Port / inlet size | 1/2 in |
| Max flow | 13 GPM (49.2 LPM) |
| Max fluid pressure | 100 psi (6.9 bar) |
| Max air inlet pressure | 100 psi (6.9 bar) |
| Solids handling | 3/32 in |
| Diaphragm material | Santoprene |
| Ball (check valve) material | Santoprene |
| Seat material | Polypropylene |
| Fluid caps & manifold | Polypropylene |
| Max fluid temperature | Up to 175°F (79°C) — limited by the polypropylene wetted path |
| Sound level | ~75 dB(A) |
| Weight | ~9 lb |
| Displacement | Positive displacement |
Datasheet: ARO 1/2" non-metallic diaphragm pump — operator's manual & specifications (PDF)
