ARO 666053-0D2 — 1/2" Polypropylene Diaphragm Pump, Nitrile Diaphragm (Flap Valve)
ARO 666053-0D2 — 1/2" Polypropylene Diaphragm Pump, Nitrile Diaphragm (Flap Valve)
Create a free account and save 5% on this order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability

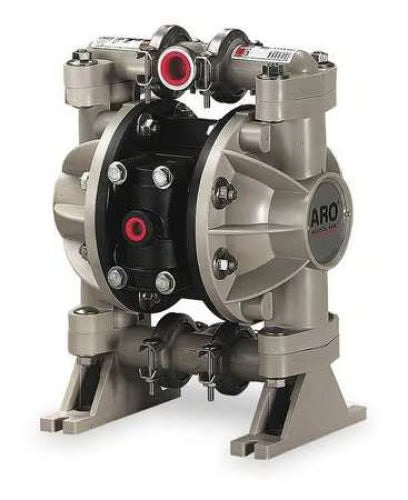

The ARO 666053-0D2 is a 1/2" air-operated double-diaphragm (AODD) pump from ARO's compact 66605X series — self-priming, run-dry capable, and rated to about 13 GPM running on plant air up to 100 psi.
This build pairs Nitrile (Buna-N) diaphragms and check balls with duck-bill (flap) seats and an all-polypropylene wetted path. The flap-style seats pass light solids better than ball checks, so this configuration suits petroleum-based and oily fluids that also carry some particulate.
Bolted construction keeps the fluid path leak-tight and ARO's unbalanced air valve is designed to resist stalling. Not sure this build suits your fluid? Send us your application details and we'll confirm the right elastomer and part number. KAD is Texas-based — order online, ship from the US, and reach US-based support before you buy.
Specifications
| Brand | ARO (Ingersoll Rand) |
| Model / MPN | 666053-0D2 |
| Series | 66605X compact series |
| Pump type | Air-operated double diaphragm (AODD) |
| Port / inlet size | 1/2 in |
| Max flow | 13 GPM (49.2 LPM) |
| Max fluid pressure | 100 psi (6.9 bar) |
| Max air inlet pressure | 100 psi (6.9 bar) |
| Check valve type | Duck-bill (flap) seats |
| Diaphragm material | Nitrile (Buna-N) |
| Ball (check valve) material | Nitrile (Buna-N) |
| Seat material | Duck-bill / flap |
| Fluid caps & manifold | Polypropylene |
| Max fluid temperature | Elastomer-dependent — see datasheet |
| Sound level | 71.1 dB(A) |
| Weight | 9.4 lb |
| Displacement | Positive displacement |
