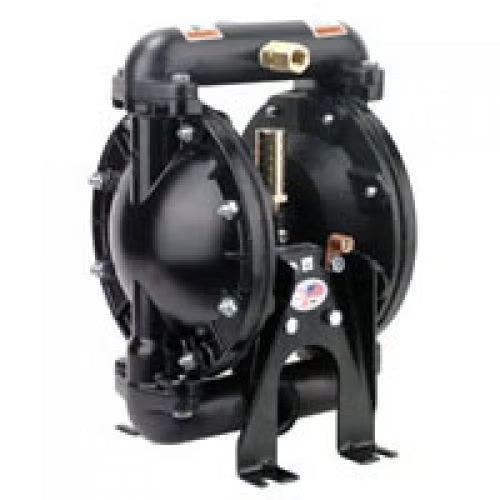

ARO 650717-C — 1" Aluminum Diaphragm Pump, Viton Diaphragm
ARO 650717-C — 1" Aluminum Diaphragm Pump, Viton Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability
The ARO 650717-C is a 1" air-operated double-diaphragm (AODD) pump from ARO's U.L.-listed fuel-transfer line — purpose-built for moving petroleum fuels, self-priming and rated to about 29 GPM on compressed air up to 120 psi.
It pairs an aluminum wetted body with a Viton (FKM) diaphragm and Acetal balls and seats. Viton is the elastomer of choice for gasoline, diesel, kerosene, aviation fuel and fuel oil, and the pump carries a U.L.-79 listing for flammable-fuel service. To meet U.L.-79 a built-in pressure-relief valve bleeds off excess pressure, and it can be plumbed to return that fuel to the supply container. Bolted construction keeps the fluid path leak-tight.
It is built for high-volume fuel transfer, bulk unloading, vehicle refueling and equipment servicing. Not sure this build suits your fuel or setup? Send us your application details and we'll point you to the right part number.
KAD is a Texas-based seller — order online, ship from the US with a short lead time, and reach US-based support if you have a sizing or compatibility question before you buy.
Specifications
| Brand | ARO (Ingersoll Rand) |
| Model / MPN | 650717-C |
| Pump type | Air-operated double diaphragm (AODD) |
| Listing | U.L.-79 listed for flammable-fuel service |
| Port / inlet size | 1" NPT |
| Air inlet | 1/4 in NPT |
| Max flow | 29 GPM (110 LPM) |
| Max fluid pressure | 120 psi (8.3 bar) |
| Max air inlet pressure | 120 psi (8.3 bar) |
| Compatible fluids | Gasoline, diesel, kerosene, aviation fuel, fuel oil, unleaded fuel |
| Diaphragm material | Viton (FKM) |
| Ball (check valve) material | Acetal |
| Seat material | Acetal |
| Fluid caps & manifold | Aluminum |
| Max fluid temperature | Up to 180°F (82°C) — limited by the acetal wetted path |
| Pressure relief | Integral relief valve (required for U.L.-79); can return bleed-off to supply |
| Displacement | Positive displacement |
Datasheet: ARO 650717-C — Operator’s Manual & Specifications (PDF)
