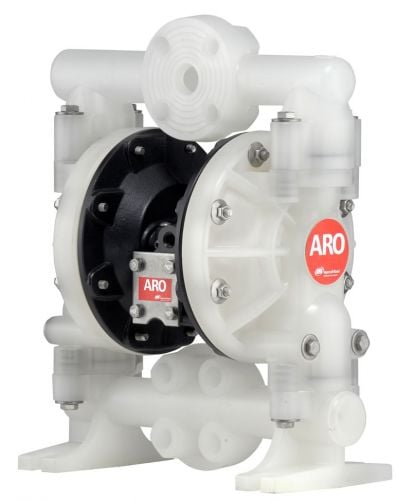

ARO 6661AJ-3EB-C — 1" Polypropylene Diaphragm Pump, Santoprene Diaphragm
ARO 6661AJ-3EB-C — 1" Polypropylene Diaphragm Pump, Santoprene Diaphragm
Create a free account and save 5% on this order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability
The ARO 6661AJ-3EB-C is a 1" air-operated double-diaphragm (AODD) pump from ARO's Pro Series 1" non-metallic line — self-priming, run-dry capable, and rated to about 47 GPM on compressed air up to 120 psi.
This build runs an all-polypropylene wetted path — fluid caps, manifold and seats — with Santoprene diaphragms and Santoprene check balls. Santoprene is a tough, value-oriented elastomer with good general chemical compatibility, well suited to water-based and mildly aggressive fluids. Bolted construction keeps the fluid path leak-tight, and ARO's patented unbalanced air valve is designed to resist stalling and ice-up.
It is built for higher-volume transfer, filling, recirculation and supply in chemical, industrial and water/wastewater service. Not sure this build suits your fluid? Send us your application details and we'll point you to the right part number.
KAD is a Texas-based seller — order online, ship from the US with a short lead time, and reach US-based support if you have a sizing or compatibility question before you buy.
Specifications
| Brand | ARO (Ingersoll Rand) |
| Model / MPN | 6661AJ-3EB-C |
| Pump type | Air-operated double diaphragm (AODD) |
| Port / inlet size | 1 in |
| Max flow | 47 GPM (178 LPM) |
| Max fluid pressure | 120 psi (8.3 bar) |
| Max air inlet pressure | 120 psi (8.3 bar) |
| Solids handling | 1/8 in (3.2 mm) |
| Diaphragm material | Santoprene |
| Ball (check valve) material | Santoprene |
| Seat material | Polypropylene |
| Fluid caps & manifold | Polypropylene (with aluminum center section) |
| Max fluid temperature | Up to 175°F (79°C) — limited by the polypropylene wetted path |
| Sound level | ~64.5 dB(A) |
| Weight | ~20.3 lb (9.2 kg) |
| Displacement | 0.17 gal (0.64 L) per cycle |
Datasheet: ARO 1" Non-Metallic Diaphragm Pump — Sales & Engineering Data (PDF)
