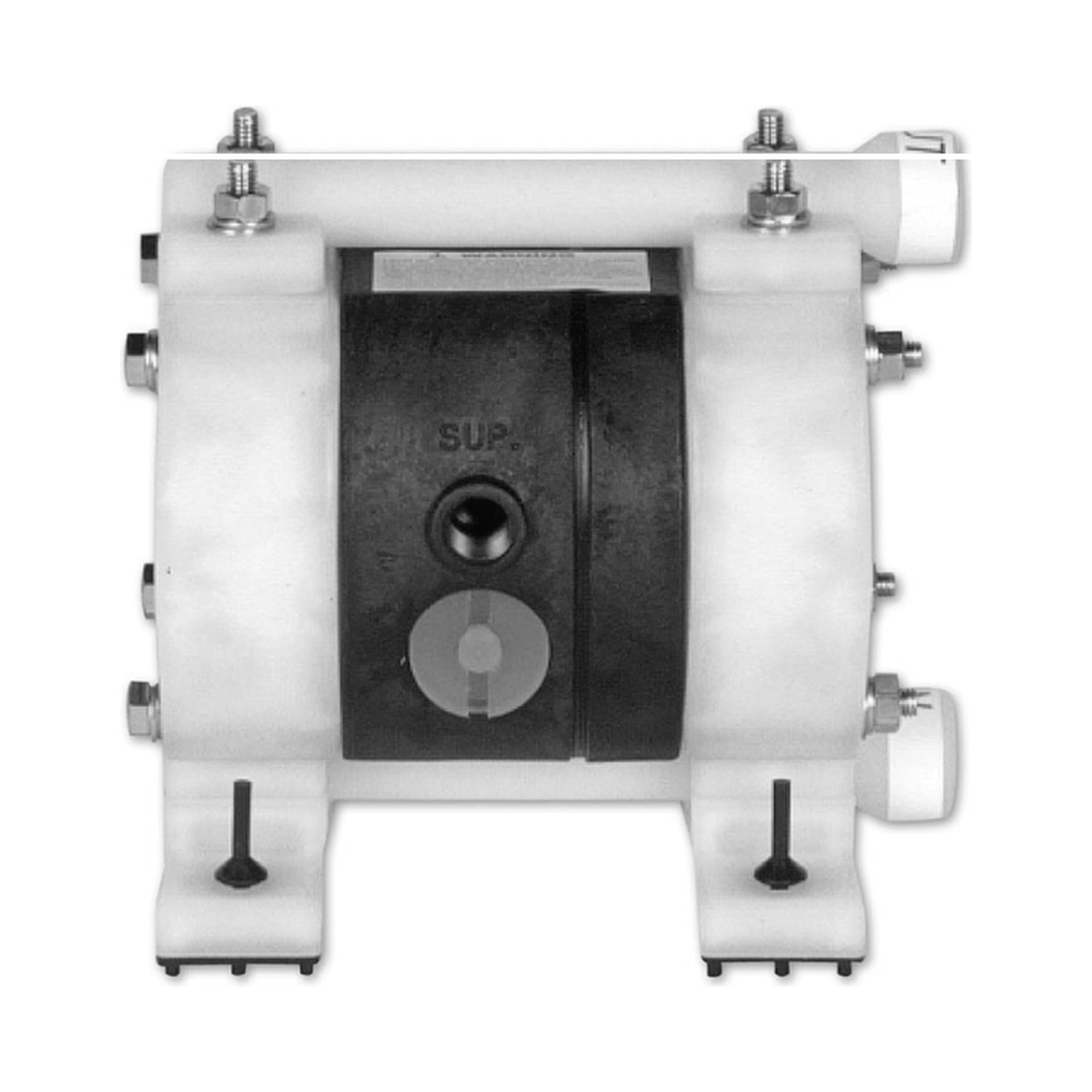

Yamada NDP-5FPT-I — 1/4" Polypropylene Diaphragm Pump, PTFE Diaphragm
Yamada NDP-5FPT-I — 1/4" Polypropylene Diaphragm Pump, PTFE Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
The NDP-5FPT-I is Yamada's 1/4" air-operated double-diaphragm pump in polypropylene, with a 3.4 GPM maximum. It handles fluid to 180°F (82°C).
The glass-filled polypropylene wetted path resists most acids, caustics and salt solutions, which is why plastic-bodied units dominate plating lines, water treatment and chemical dosing. PTFE diaphragms and balls give near-universal chemical resistance, covering solvents, concentrated acids and oxidizers that destroy rubber elastomers, at the cost of a slightly lower displacement per stroke. Flat check valves are the right choice where the pump has to lift liquid rather than being fed by gravity.
The split suction manifold lets two separate fluids be drawn into one pump. Being air-driven, it needs no motor starter or electrical classification at the pump, self-primes from dry, and can be dead-headed and left stalled under pressure.
Stocked and shipped from Texas with fast dispatch and competitive pricing. Send over your application details if you want the material selection checked before ordering.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-5FPT-I |
| Yamada item no. | 851562-I |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-5 |
| Port size | 1/4" |
| Maximum flow | 3.4 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Displacement per cycle | 0.0078 gal (29 cc) |
| Maximum dry suction lift | 5 ft |
| Maximum fluid temperature | 180°F (82°C) |
| Check valve type | Flat valve |
| Body / wetted materials | Polypropylene (PPG) |
| Diaphragm material | PTFE |
| Ball material | PTFE |
| Air motor | Standard |
| Air inlet | 1/4” Female NPT |
| Air exhaust | 3/8” Female NPT |
| Options | Split suction manifold |
| Repair kit | K5-PT-2 |
