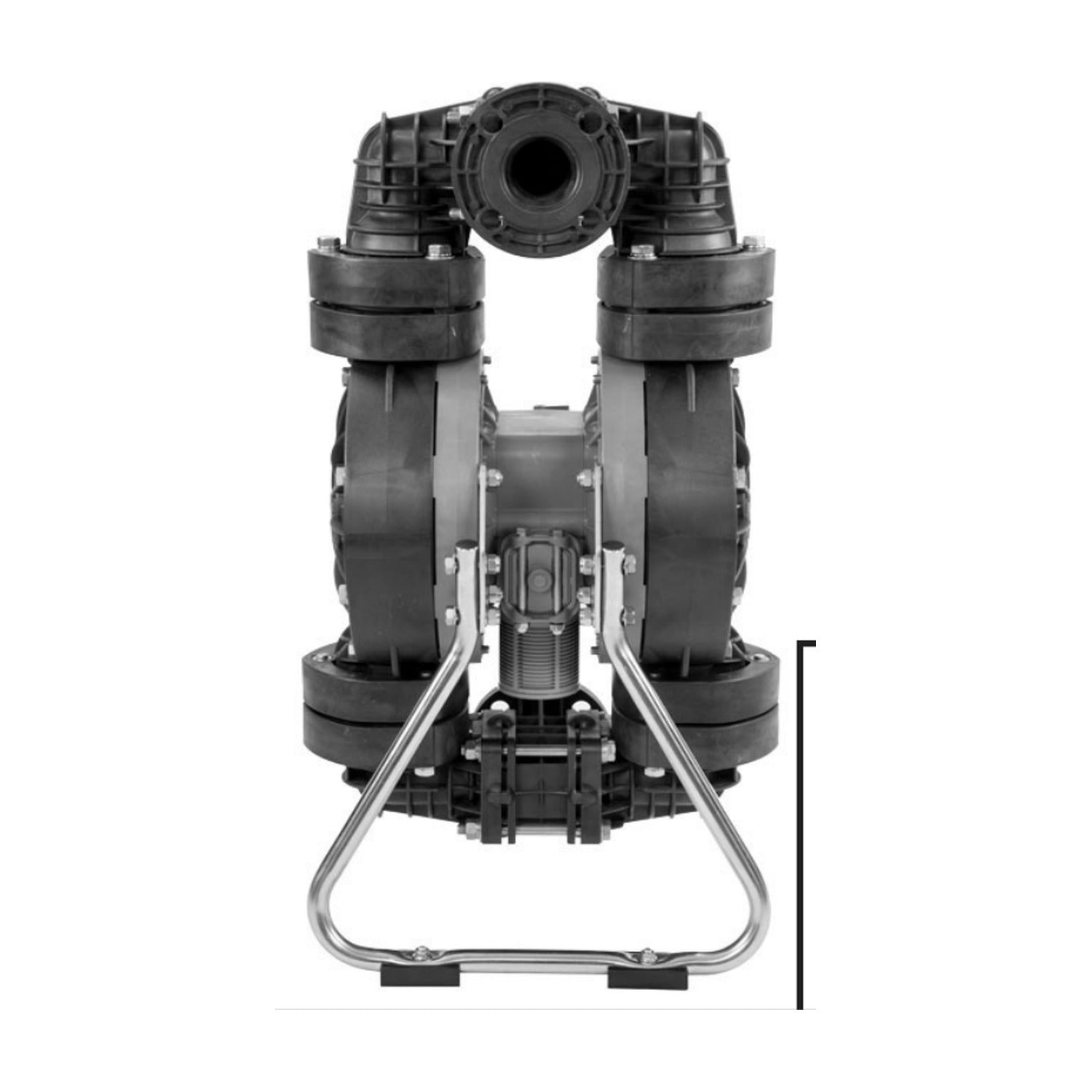

Yamada NDP-50BVE-PP — 2" Kynar PVDF Diaphragm Pump, EPDM Diaphragm
Yamada NDP-50BVE-PP — 2" Kynar PVDF Diaphragm Pump, EPDM Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
Yamada's NDP-50BVE-PP is a 2" AODD pump in kynar pvdf, moving up to 164 GPM. It passes solids to 5/16" (8 mm) and handles fluid to 212°F (100°C).
Kynar (PVDF) resists concentrated acids, halogens and aggressive solvents that attack polypropylene, and carries a higher temperature ceiling than PP. EPDM diaphragms and balls handle acids, caustics, ketones and alcohols well — but not petroleum products, which swell the elastomer. Ball check valves are the right choice for flooded-suction installations.
The non-metallic center body and glass-filled polypropylene air motor cut weight and remove a corrosion path in wet or chemically aggressive areas. It runs on plant air with no electrical supply at the pump, self-primes, and will sit stalled against a closed discharge without damage — useful on intermittent or dead-headed duty.
Stocked and shipped from Texas with fast dispatch and competitive pricing. Send over your application details if you want the material selection checked before ordering.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-50BVE-PP |
| Yamada item no. | 854848 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-50 |
| Port size | 2" |
| Maximum flow | 164 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 5/16" (8 mm) |
| Displacement per cycle | Rubber 1.12 gal (4.25 L) |
| Maximum dry suction lift | 19 ft |
| Maximum fluid temperature | 212°F (100°C) |
| Check valve type | Ball valve |
| Body / wetted materials | Kynar (PVDF) |
| Diaphragm material | Nordel (EPDM) |
| Ball material | Nordel (EPDM) |
| Air motor | Glass-filled polypropylene (non-metallic center body) |
| Air inlet | 3/4” Female NPT |
| Air exhaust | 1” Female NPT |
| Options | Glass-filled polypropylene air motor / non-metallic center body |
| Repair kit | K50-VE |
