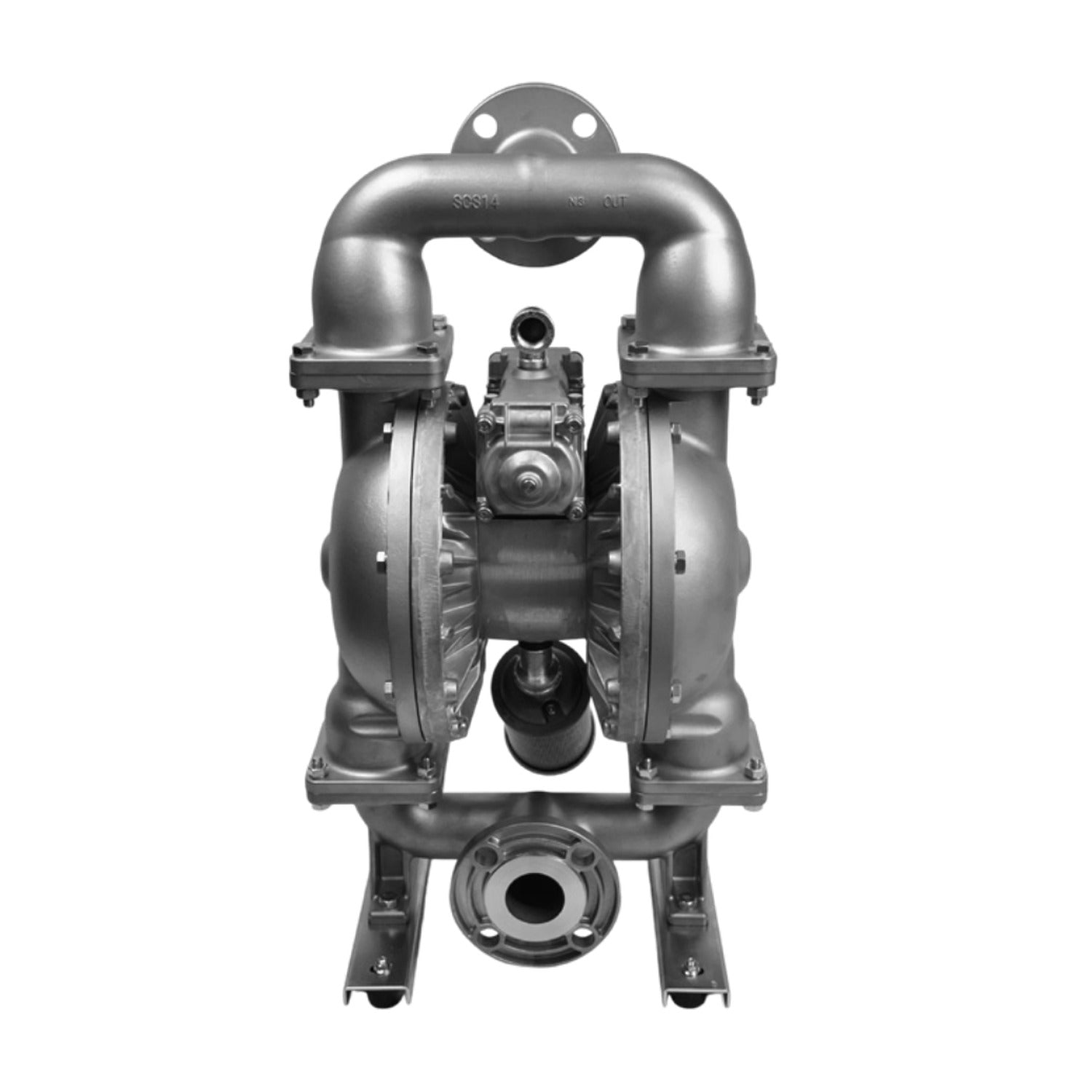

Yamada NDP-500BSW — 2" Stainless Steel Diaphragm Pump, Ultimate Diaphragm
Yamada NDP-500BSW — 2" Stainless Steel Diaphragm Pump, Ultimate Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
This NDP-500BSW is a 2" NDP-500 air-operated diaphragm pump in stainless steel, rated to 226 GPM. It passes solids to 5/16" (8 mm) and handles fluid to 212°F (100°C).
A 316 stainless wetted path resists chlorides, organic acids and most process chemicals, and is the standard specification wherever wash-down or product purity matters. Yamada's Ultimate two-piece diaphragm pairs a PTFE wetted face with an elastomer backer, giving PTFE chemical resistance with markedly longer flex life than solid PTFE. Ball check valves are the right choice for flooded-suction installations.
Air drive means no electrics at the pump, seal-less operation with nothing to leak at a shaft, and safe stalling against a closed discharge.
Stocked and shipped from Texas with fast dispatch and competitive pricing. Send over your application details if you want the material selection checked before ordering.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-500BSW |
| Yamada item no. | 855396 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-500 |
| Port size | 2" |
| Maximum flow | 226 GPM |
| Air supply pressure | 20-125 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 5/16" (8 mm) |
| Displacement per cycle | Rubber 1.14 gal / Thermoplastic 1.22 gal / PTFE 0.70 gal |
| Maximum dry suction lift | 18 ft |
| Maximum fluid temperature | 212°F (100°C) |
| Check valve type | Ball valve |
| Body / wetted materials | Stainless Steel (316) |
| Diaphragm material | Ultimate |
| Ball material | Ultimate |
| Air motor | Standard |
| Air inlet | 3/4” Female NPT |
| Air exhaust | 1” Female NPT |
| Repair kit | K50-MW |
