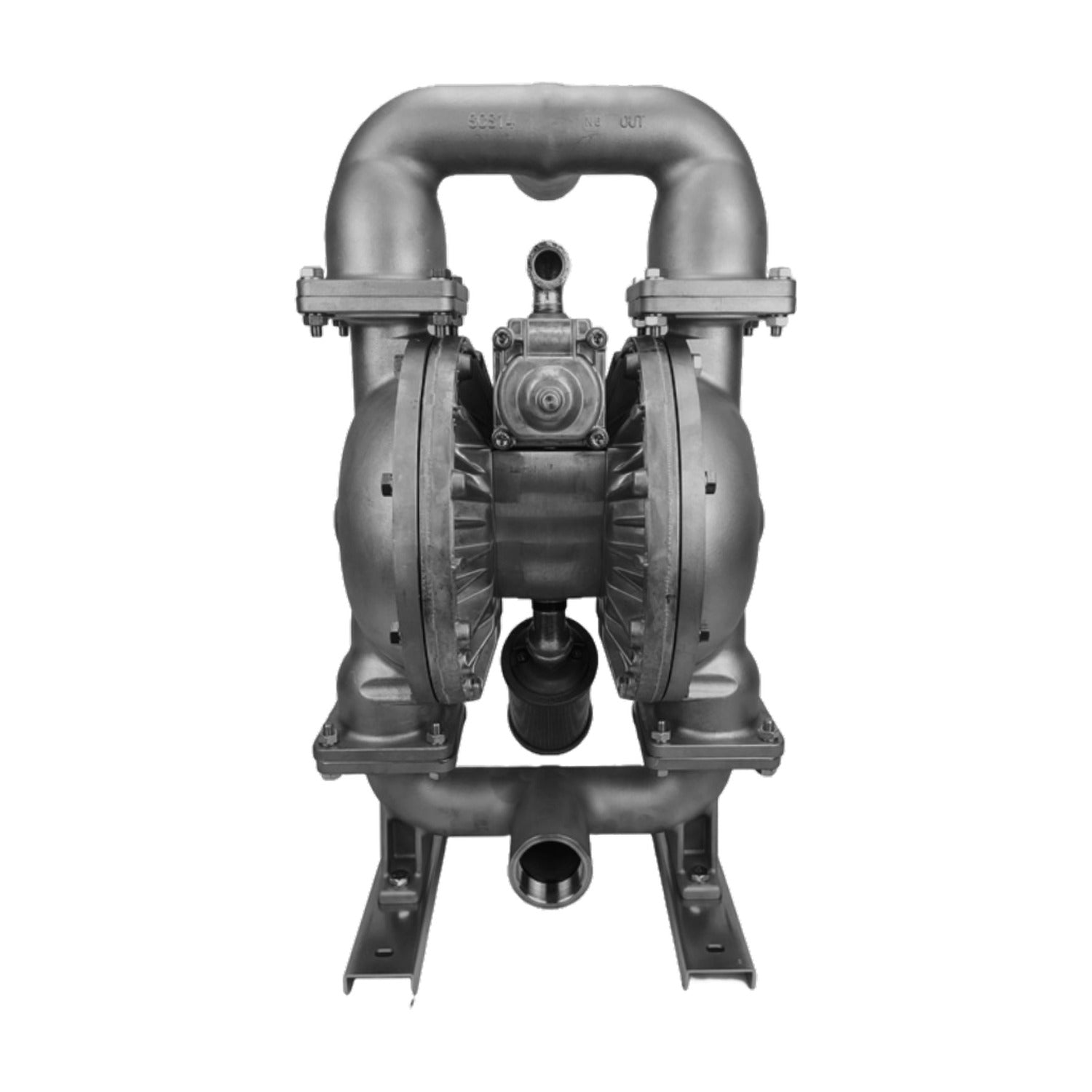

Yamada NDP-500BSV-NPT — 2" Stainless Steel Diaphragm Pump, Viton Diaphragm
Yamada NDP-500BSV-NPT — 2" Stainless Steel Diaphragm Pump, Viton Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
Yamada builds the NDP-500BSV-NPT as a 2" double-diaphragm pump in stainless steel, capable of 226 GPM. It passes solids to 5/16" (8 mm) and handles fluid to 248°F (120°C).
316 stainless construction is specified where corrosion resistance and cleanability both matter — dairy, brewing, fine chemicals and pharmaceutical transfer. Viton diaphragms and balls are chosen for aggressive chemicals and hot fluids — aromatic solvents, chlorinated hydrocarbons and concentrated acids. Ball check valves are the right choice for flooded-suction installations.
Supplied with NPT threaded connections. Being air-driven, it needs no motor starter or electrical classification at the pump, self-primes from dry, and can be dead-headed and left stalled under pressure.
We ship from Texas, quote honest lead times and price sharply. Tell us the fluid, temperature and flow you need and we will confirm the right configuration before you order.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-500BSV-NPT |
| Yamada item no. | 855400 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-500 |
| Port size | 2" |
| Maximum flow | 226 GPM |
| Air supply pressure | 20-125 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 5/16" (8 mm) |
| Displacement per cycle | Rubber 1.14 gal / Thermoplastic 1.22 gal / PTFE 0.70 gal |
| Maximum dry suction lift | 18 ft |
| Maximum fluid temperature | 248°F (120°C) |
| Check valve type | Ball valve |
| Body / wetted materials | Stainless Steel (316) |
| Diaphragm material | Viton (FKM) |
| Ball material | Viton (FKM) |
| Air motor | Standard |
| Air inlet | 3/4” Female NPT |
| Air exhaust | 1” Female NPT |
| Options | NPT connection |
| Repair kit | K50-MV |
