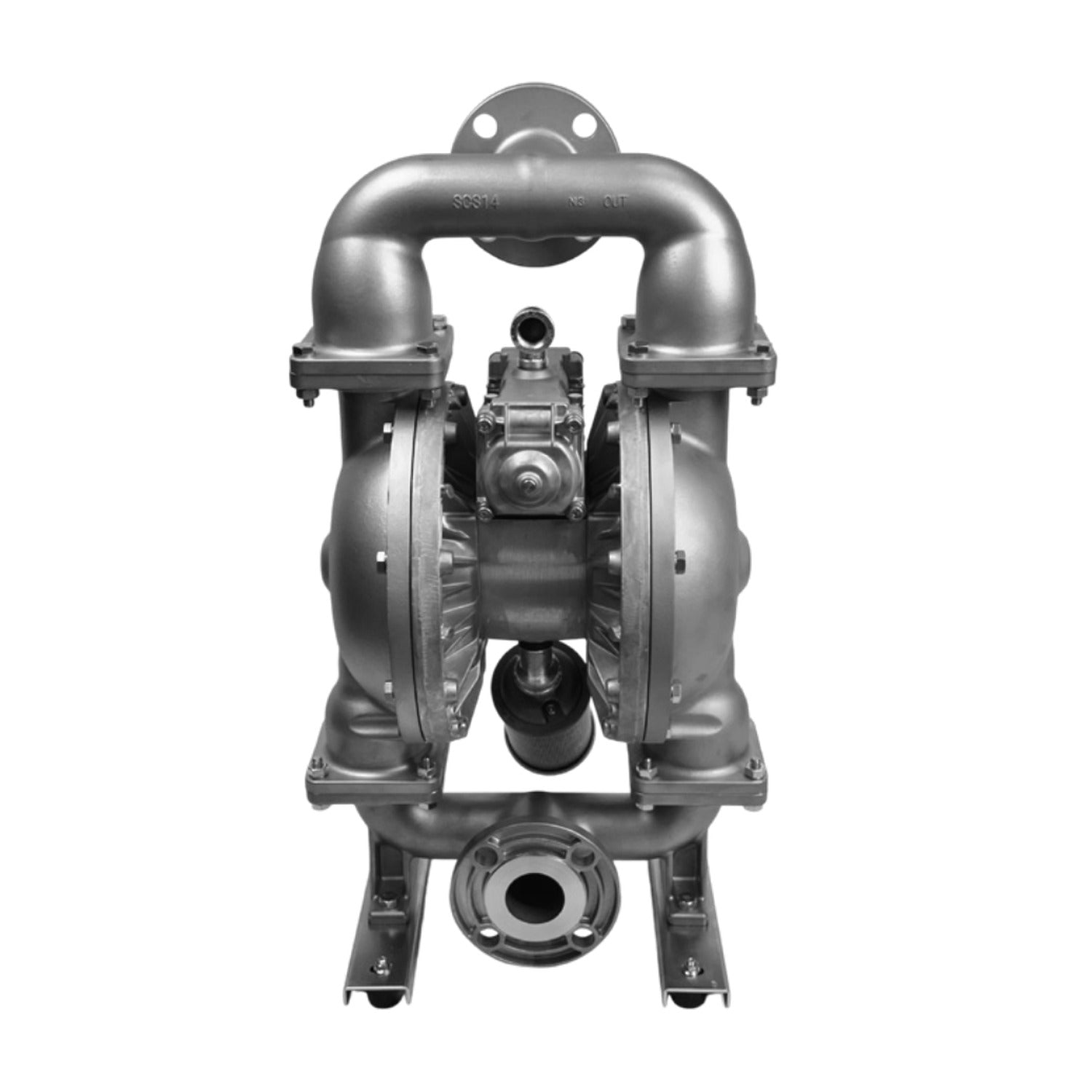

Yamada NDP-500BSH — 2" Stainless Steel Diaphragm Pump, Hytrel Diaphragm
Yamada NDP-500BSH — 2" Stainless Steel Diaphragm Pump, Hytrel Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
This NDP-500BSH is a 2" NDP-500 air-operated diaphragm pump in stainless steel, rated to 226 GPM. It passes solids to 5/16" (8 mm) and handles fluid to 248°F (120°C).
316 stainless wetted parts take the aggressive chemicals and elevated-temperature service that aluminum cannot, and clean up for food, beverage and pharmaceutical work. Hytrel diaphragms and balls carry the highest temperature rating in the range and resist abrasion well, which suits hot oils and particulate-bearing fluids. Ball check valves are the right choice for flooded-suction installations.
Air drive means no electrics at the pump, seal-less operation with nothing to leak at a shaft, and safe stalling against a closed discharge.
Stocked and shipped from Texas with fast dispatch and competitive pricing. Send over your application details if you want the material selection checked before ordering.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-500BSH |
| Yamada item no. | 855394 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-500 |
| Port size | 2" |
| Maximum flow | 226 GPM |
| Air supply pressure | 20-125 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 5/16" (8 mm) |
| Displacement per cycle | Rubber 1.14 gal / Thermoplastic 1.22 gal / PTFE 0.70 gal |
| Maximum dry suction lift | 18 ft |
| Maximum fluid temperature | 248°F (120°C) |
| Check valve type | Ball valve |
| Body / wetted materials | Stainless Steel (316) |
| Diaphragm material | Hytrel (TPE) |
| Ball material | Hytrel (TPE) |
| Air motor | Standard |
| Air inlet | 3/4” Female NPT |
| Air exhaust | 1” Female NPT |
| Repair kit | K50-MH |
