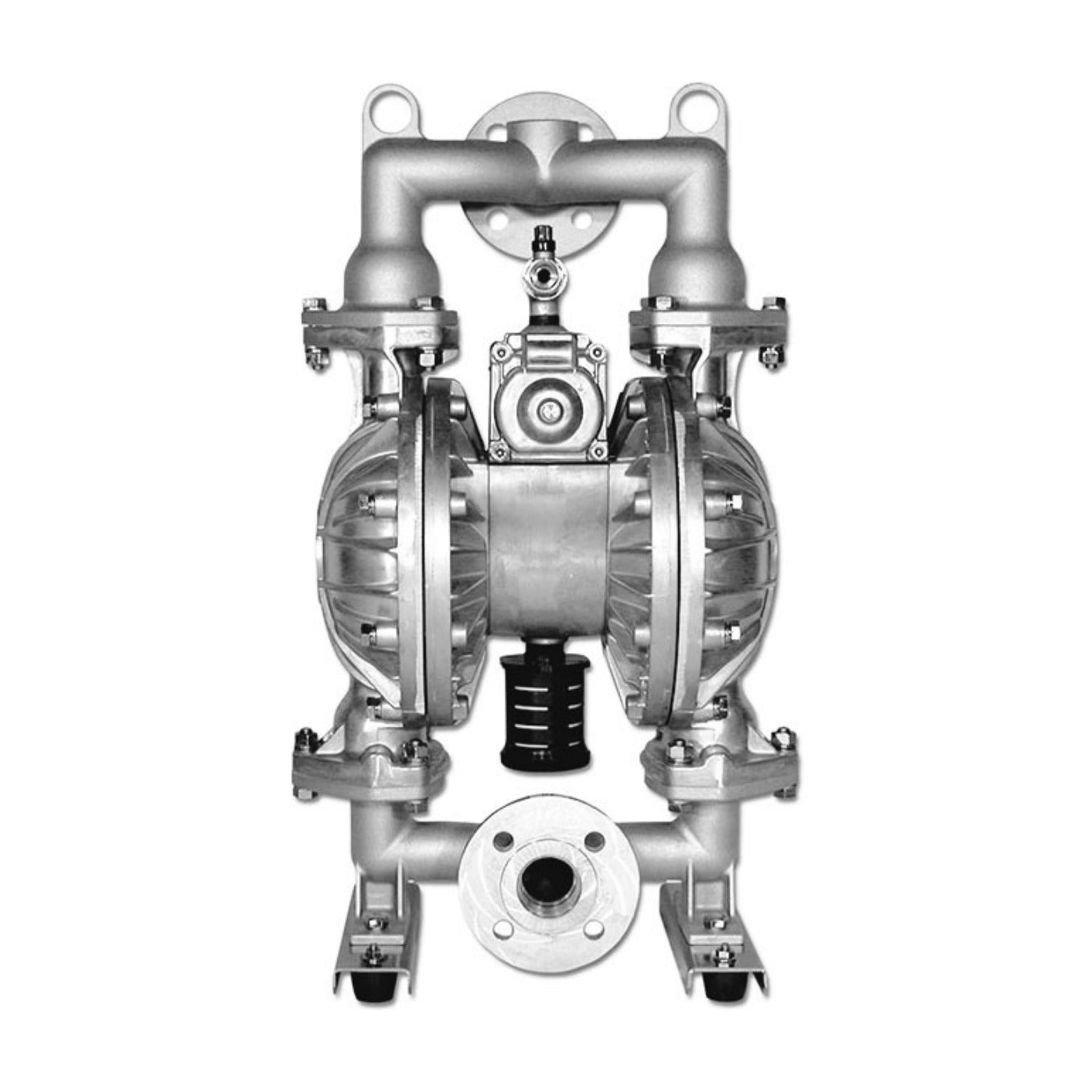

Yamada NDP-40BAT — 1-1/2" Aluminum Diaphragm Pump, PTFE Diaphragm
Yamada NDP-40BAT — 1-1/2" Aluminum Diaphragm Pump, PTFE Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
The Yamada NDP-40BAT is a 1-1/2" air-operated double-diaphragm pump in aluminum, rated to 107 GPM. It passes solids to 9/32" (7 mm) and handles fluid to 212°F (100°C).
The aluminum body suits solvents, fuels, oils and paints — the general-industrial fluids where a metal pump is wanted but stainless is more than the job needs. PTFE diaphragms and balls give near-universal chemical resistance, covering solvents, concentrated acids and oxidizers that destroy rubber elastomers, at the cost of a slightly lower displacement per stroke. Ball check valves are the right choice for flooded-suction installations.
Air drive means no electrics at the pump, seal-less operation with nothing to leak at a shaft, and safe stalling against a closed discharge.
We ship from Texas, quote honest lead times and price sharply. Tell us the fluid, temperature and flow you need and we will confirm the right configuration before you order.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-40BAT |
| Yamada item no. | 852222 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-40 |
| Port size | 1-1/2" |
| Maximum flow | 107 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 9/32" (7 mm) |
| Displacement per cycle | Rubber 0.73 gal (2.74 L) |
| Maximum dry suction lift | 18 ft |
| Maximum fluid temperature | 212°F (100°C) |
| Check valve type | Ball valve |
| Body / wetted materials | Aluminum (ADC-12) |
| Diaphragm material | PTFE |
| Ball material | PTFE |
| Air motor | Standard |
| Air inlet | 1/2" Female NPT |
| Air exhaust | 1" Female NPT |
| Repair kit | K40-MT |
