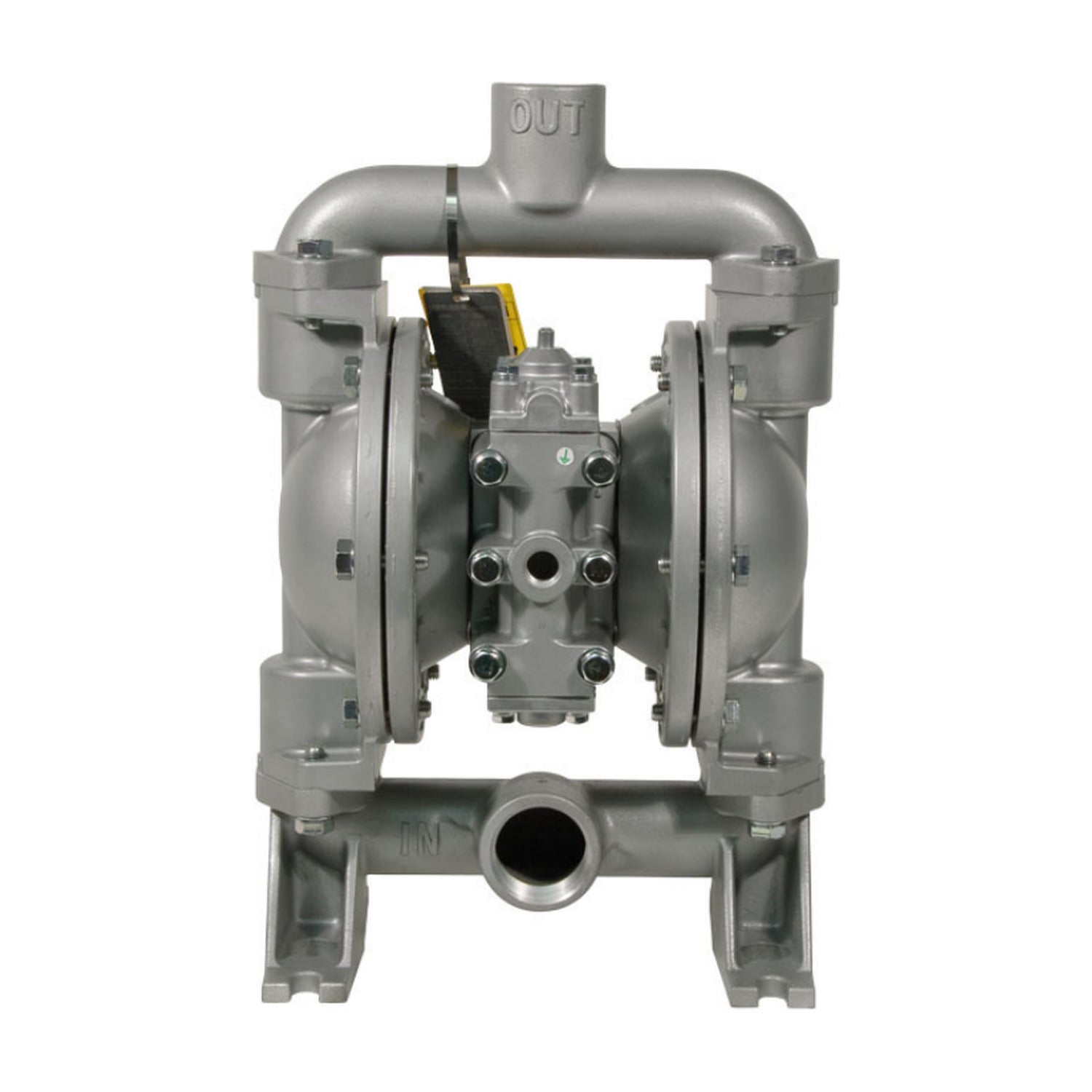

Yamada NDP-32BAN — 1-1/2" in / 1-1/4" out Aluminum Diaphragm Pump, Buna-N Diaphragm
Yamada NDP-32BAN — 1-1/2" in / 1-1/4" out Aluminum Diaphragm Pump, Buna-N Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
Yamada's NDP-32BAN is a 1-1/2" in / 1-1/4" out AODD pump in aluminum, moving up to 50.2 GPM. It passes solids to 1/8" (3 mm) and handles fluid to 180°F (82°C).
An aluminum wetted path is the workhorse choice for petroleum products, inks, adhesives and machine coolant, giving metal durability without the cost of 316. Buna-N diaphragms and balls suit petroleum oils, diesel, hydraulic fluid and greases, but should be kept away from ketones and strong oxidizers. Ball check valves are the right choice for flooded-suction installations.
Air drive means no electrics at the pump, seal-less operation with nothing to leak at a shaft, and safe stalling against a closed discharge.
Stocked and shipped from Texas with fast dispatch and competitive pricing. Send over your application details if you want the material selection checked before ordering.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-32BAN |
| Yamada item no. | 854575 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-32 |
| Port size | 1-1/2" in / 1-1/4" out |
| Maximum flow | 50.2 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 1/8" (3 mm) |
| Displacement per cycle | Rubber 0.176 gal / PTFE 0.147 gal |
| Maximum fluid temperature | 180°F (82°C) |
| Check valve type | Ball valve |
| Body / wetted materials | Aluminum (ADC-12) |
| Diaphragm material | Buna-N (NBR) |
| Ball material | Buna-N (NBR) |
| Air motor | Standard |
| Air inlet | 3/8” Female NPT |
| Air exhaust | 3/4” Female NPT |
| Repair kit | K32-MN |
