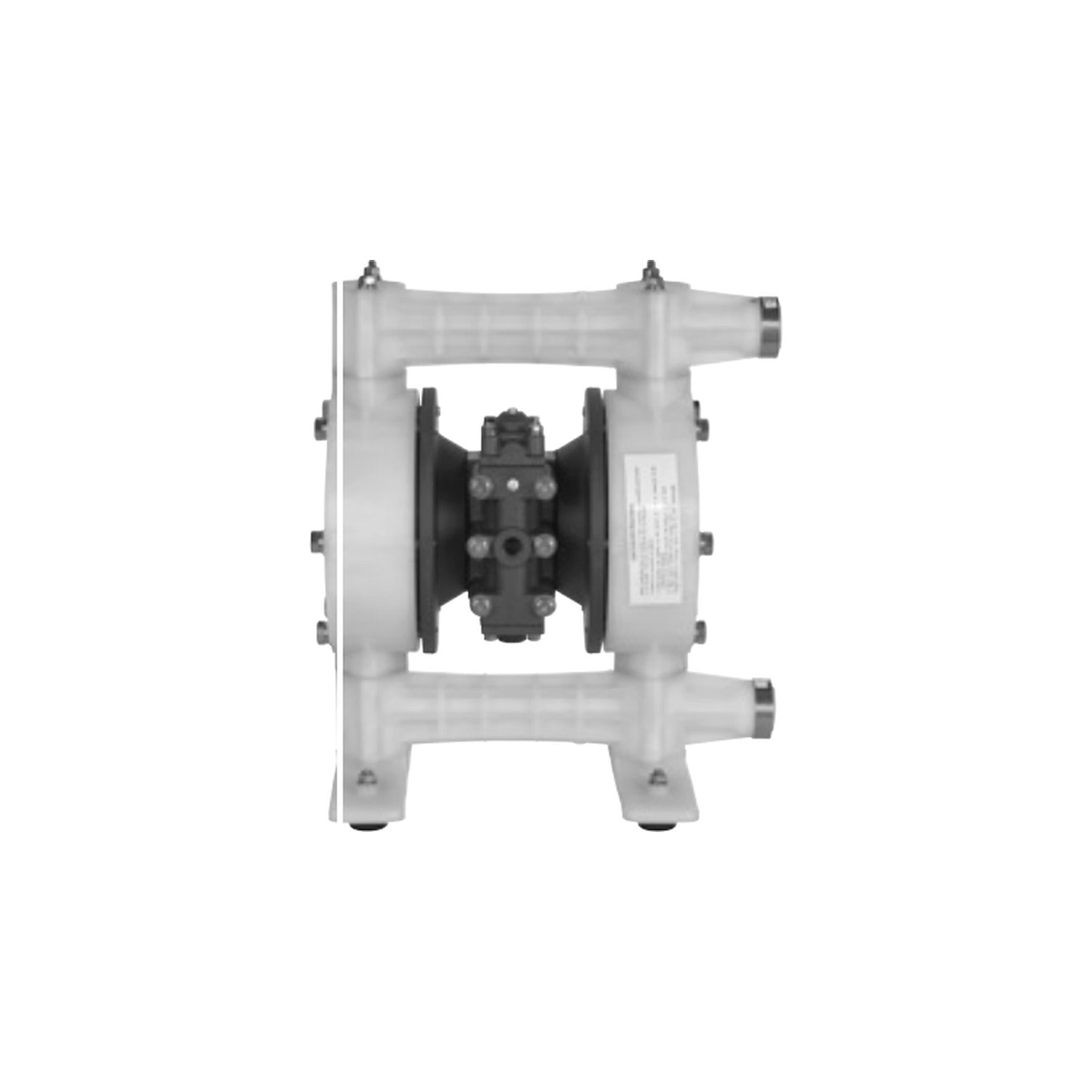

Yamada NDP-25BPN — 1" Polypropylene Diaphragm Pump, Buna-N Diaphragm
Yamada NDP-25BPN — 1" Polypropylene Diaphragm Pump, Buna-N Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
The NDP-25BPN is Yamada's 1" air-operated double-diaphragm pump in polypropylene, with a 46.2 GPM maximum. It passes solids to 1/8" (3 mm) and handles fluid to 180°F (82°C).
The glass-filled polypropylene wetted path resists most acids, caustics and salt solutions, which is why plastic-bodied units dominate plating lines, water treatment and chemical dosing. Buna-N diaphragms and balls suit petroleum oils, diesel, hydraulic fluid and greases, but should be kept away from ketones and strong oxidizers. Ball check valves are the right choice for flooded-suction installations.
It runs on plant air with no electrical supply at the pump, self-primes, and will sit stalled against a closed discharge without damage — useful on intermittent or dead-headed duty.
Texas-based, with short lead times and pricing that reflects our supply position. Not sure this is the right build? Send us the fluid and duty and we will confirm.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-25BPN |
| Yamada item no. | 852385 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-25 |
| Port size | 1" |
| Maximum flow | 46.2 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 1/8" (3 mm) |
| Displacement per cycle | Rubber 0.22 gal (833 cc) |
| Maximum dry suction lift | 18 ft |
| Maximum fluid temperature | 180°F (82°C) |
| Check valve type | Ball valve |
| Body / wetted materials | Polypropylene (PPG) |
| Diaphragm material | Buna-N (NBR) |
| Ball material | Buna-N (NBR) |
| Air motor | Standard |
| Air inlet | 3/8” Female NPT |
| Air exhaust | 3/4” Female NPT |
