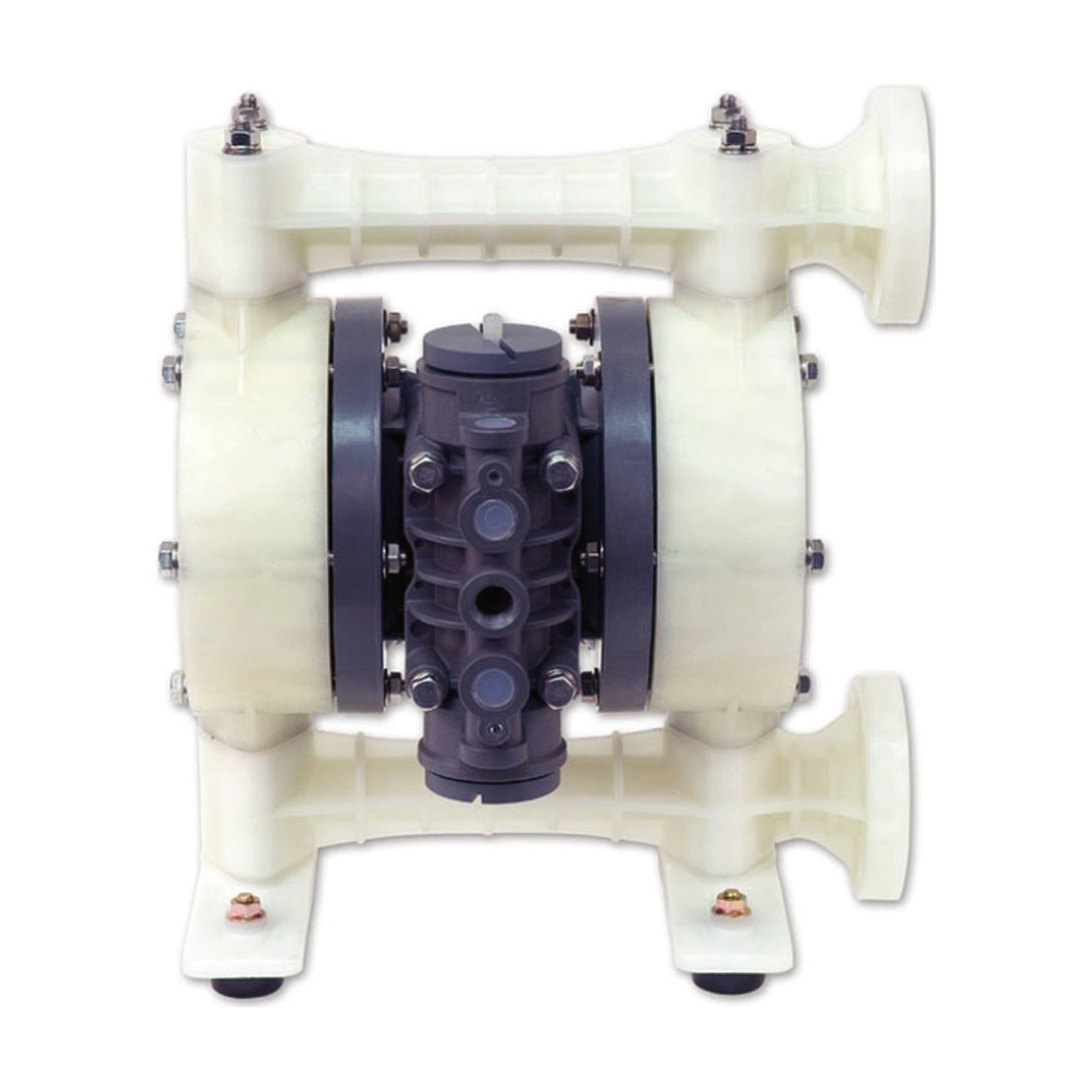

Yamada NDP-25BPE-PP — 1" Polypropylene Diaphragm Pump, EPDM Diaphragm
Yamada NDP-25BPE-PP — 1" Polypropylene Diaphragm Pump, EPDM Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
The Yamada NDP-25BPE-PP is a 1" air-operated double-diaphragm pump in polypropylene, rated to 46.2 GPM. It passes solids to 1/8" (3 mm) and handles fluid to 180°F (82°C).
Polypropylene construction gives broad resistance to inorganic acids and caustics at a lower cost than fluoropolymer, and it stays inert in the salt and chlorine service that corrodes metal pumps. EPDM diaphragms and balls handle acids, caustics, ketones and alcohols well — but not petroleum products, which swell the elastomer. Ball check valves are the right choice for flooded-suction installations.
The non-metallic center body and glass-filled polypropylene air motor cut weight and remove a corrosion path in wet or chemically aggressive areas. It runs on plant air with no electrical supply at the pump, self-primes, and will sit stalled against a closed discharge without damage — useful on intermittent or dead-headed duty.
Texas-based, with short lead times and pricing that reflects our supply position. Not sure this is the right build? Send us the fluid and duty and we will confirm.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-25BPE-PP |
| Yamada item no. | 854173 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-25 |
| Port size | 1" |
| Maximum flow | 46.2 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 1/8" (3 mm) |
| Displacement per cycle | Rubber 0.22 gal (833 cc) |
| Maximum dry suction lift | 18 ft |
| Maximum fluid temperature | 180°F (82°C) |
| Check valve type | Ball valve |
| Body / wetted materials | Polypropylene (PPG) |
| Diaphragm material | Nordel (EPDM) |
| Ball material | Nordel (EPDM) |
| Air motor | Glass-filled polypropylene (non-metallic center body) |
| Air inlet | 3/8” Female NPT |
| Air exhaust | 3/4” Female NPT |
| Options | Glass-filled polypropylene air motor / non-metallic center body |
| Repair kit | K25-PE-PP |
