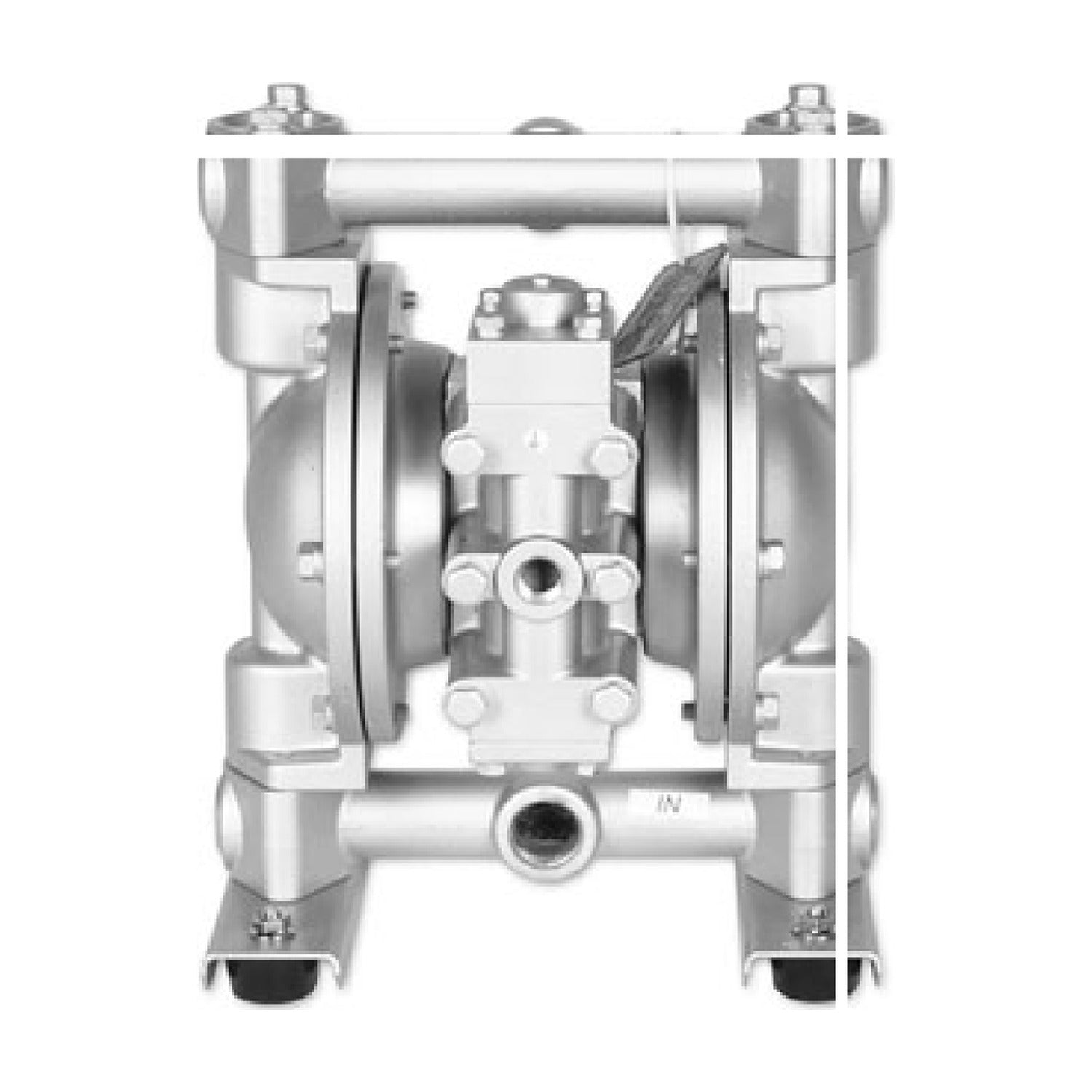

Yamada NDP-20BAW-PP — 3/4" Aluminum Diaphragm Pump, Ultimate Diaphragm
Yamada NDP-20BAW-PP — 3/4" Aluminum Diaphragm Pump, Ultimate Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
The NDP-20BAW-PP is Yamada's 3/4" air-operated double-diaphragm pump in aluminum, with a 31.7 GPM maximum. It passes solids to 1/16" (2.0 mm) and handles fluid to 212°F (100°C).
An aluminum wetted path is the workhorse choice for petroleum products, inks, adhesives and machine coolant, giving metal durability without the cost of 316. Yamada's Ultimate two-piece diaphragm pairs a PTFE wetted face with an elastomer backer, giving PTFE chemical resistance with markedly longer flex life than solid PTFE. Ball check valves are the right choice for flooded-suction installations.
The non-metallic center body and glass-filled polypropylene air motor cut weight and remove a corrosion path in wet or chemically aggressive areas. The pump self-primes, handles a degree of entrained air, and holds pressure when stalled, which makes it forgiving on transfer duty that starts and stops.
Texas-based, with short lead times and pricing that reflects our supply position. Not sure this is the right build? Send us the fluid and duty and we will confirm.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-20BAW-PP |
| Yamada item no. | 854063-U |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-20 |
| Port size | 3/4" |
| Maximum flow | 31.7 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 1/16" (2.0 mm) |
| Displacement per cycle | Rubber 0.163 gal (615 cc) / PTFE 0.143 gal (539 cc) |
| Maximum dry suction lift | 18 ft |
| Maximum fluid temperature | 212°F (100°C) |
| Check valve type | Ball valve |
| Body / wetted materials | Aluminum (ADC-12) |
| Diaphragm material | Ultimate |
| Ball material | Ultimate |
| Air motor | Glass-filled polypropylene (non-metallic center body) |
| Air inlet | 1/4" Female NPT |
| Air exhaust | 3/4" Female NPT |
| Options | Glass-filled polypropylene air motor / non-metallic center body |
| Repair kit | K20-MW-1 |
