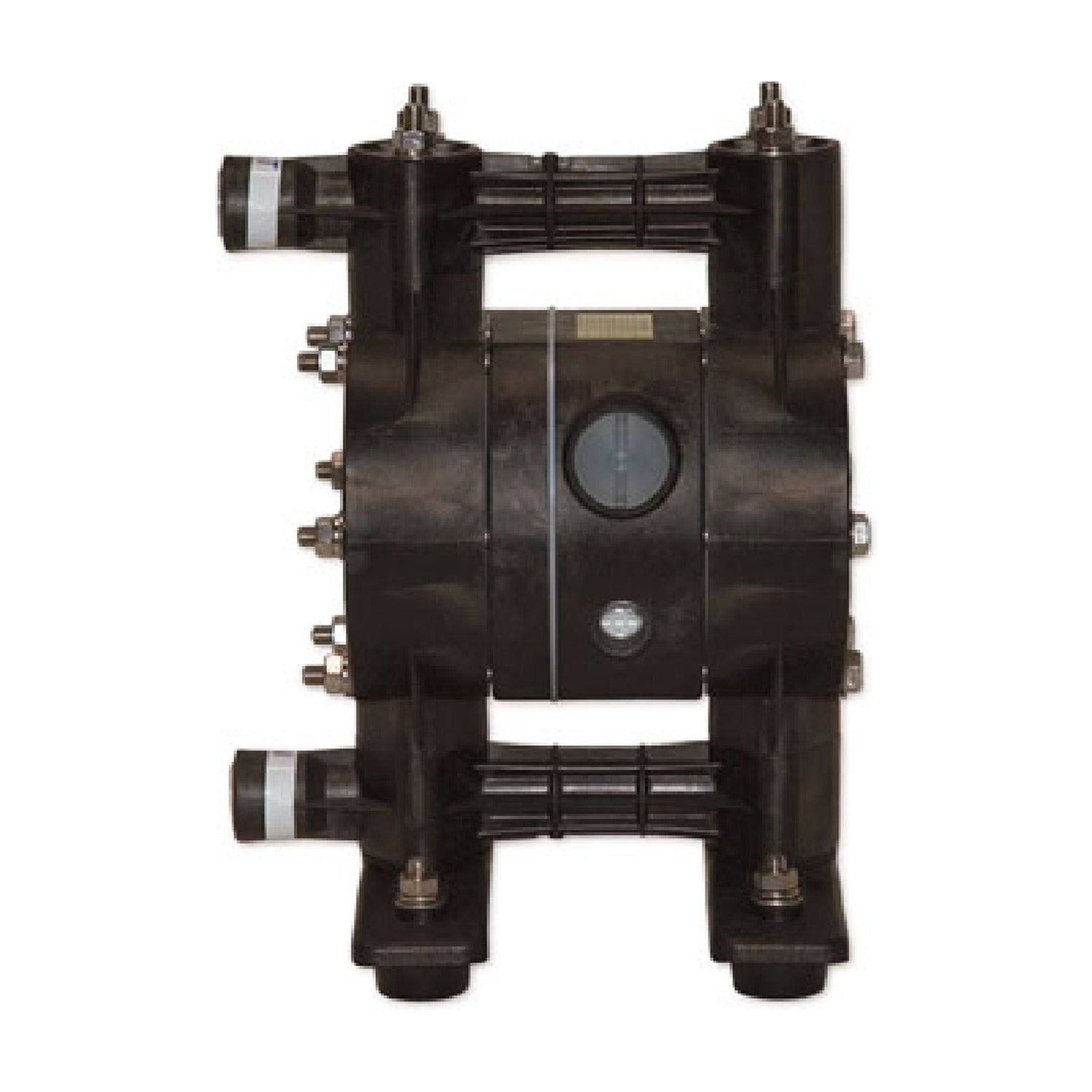

Yamada NDP-15FVT-D — 1/2" Kynar PVDF Diaphragm Drum Pump, PTFE Diaphragm
Yamada NDP-15FVT-D — 1/2" Kynar PVDF Diaphragm Drum Pump, PTFE Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
The NDP-15FVT-D is Yamada's 1/2" air-operated double-diaphragm pump in kynar pvdf, with a 13.5 GPM maximum. It passes solids to 1/32" (1 mm) and handles fluid to 212°F (100°C).
Kynar (PVDF) resists concentrated acids, halogens and aggressive solvents that attack polypropylene, and carries a higher temperature ceiling than PP. PTFE diaphragms and balls give near-universal chemical resistance, covering solvents, concentrated acids and oxidizers that destroy rubber elastomers, at the cost of a slightly lower displacement per stroke. Flat check valves are the right choice where the pump has to lift liquid rather than being fed by gravity.
Supplied as a drum-mount package with dip tube and bung adapter. It self-primes, tolerates running dry, and stalls harmlessly against a closed valve, so it suits batching and intermittent transfer where a centrifugal pump would be a poor fit.
Ordered online, shipped from Texas, priced well and backed by US support before and after the sale. Send us your application details if you want a second opinion on materials.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-15FVT-D |
| Yamada item no. | NDP-15FVT-D |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-15 |
| Port size | 1/2" |
| Maximum flow | 13.5 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 1/32" (1 mm) |
| Displacement per cycle | 0.0338 gal (128 cc) |
| Maximum dry suction lift | 8 ft (flat check valve) |
| Maximum fluid temperature | 212°F (100°C) |
| Check valve type | Flat valve |
| Body / wetted materials | Kynar (PVDF) |
| Diaphragm material | PTFE |
| Ball material | PTFE |
| Air motor | Standard |
| Air inlet | 1/4" Female NPT |
| Air exhaust | 3/8" Female NPT |
| Options | Drum pump |
