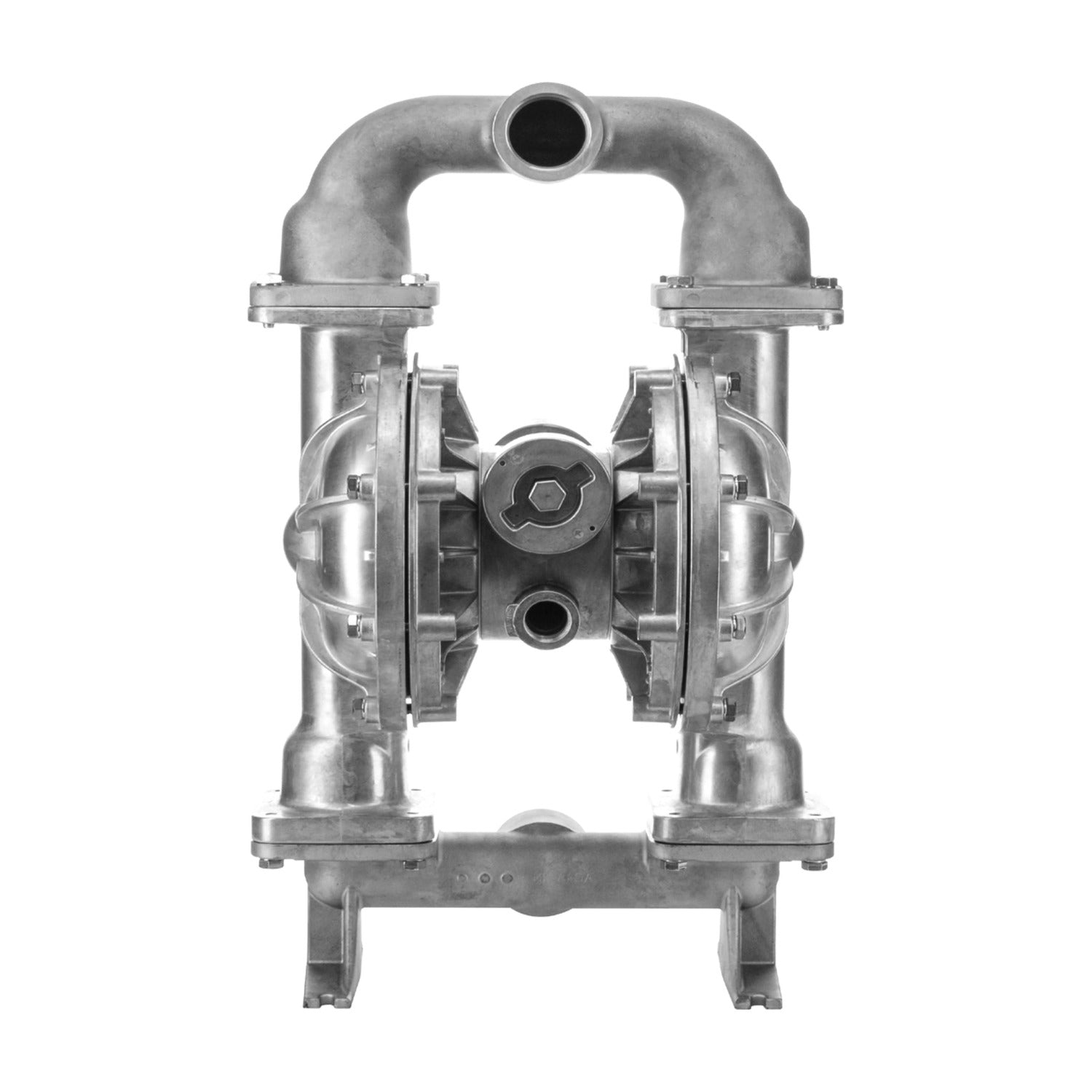

Yamada G50AH11 — 2" Aluminum Diaphragm Pump, Hytrel Diaphragm
Yamada G50AH11 — 2" Aluminum Diaphragm Pump, Hytrel Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
Yamada builds the G50AH11 as a 2" double-diaphragm pump in aluminum, capable of 193 GPM. It passes solids to 5/16" (8 mm) and handles fluid to 248°F (120°C).
An aluminum wetted path is the workhorse choice for petroleum products, inks, adhesives and machine coolant, giving metal durability without the cost of 316. Hytrel diaphragms and balls carry the highest temperature rating in the range and resist abrasion well, which suits hot oils and particulate-bearing fluids. Ball check valves come as standard across the Global Series.
The Global Series air motor uses Yamada's S-Spool valve with no pilot valve and runs completely oil-free, so there are fewer parts to fail and no lubricator to maintain. The pump self-primes, handles a degree of entrained air, and holds pressure when stalled, which makes it forgiving on transfer duty that starts and stops.
Stocked and shipped from Texas with fast dispatch and competitive pricing. Send over your application details if you want the material selection checked before ordering.
| Brand | Yamada |
|---|---|
| Model / MPN | G50AH11 |
| Yamada item no. | 855333 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | G50 |
| Port size | 2" |
| Maximum flow | 193 GPM |
| Air supply pressure | 20-100 PSI / 20-125 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 5/16" (8 mm) |
| Maximum fluid temperature | 248°F (120°C) |
| Check valve type | Ball valve (standard on G Series) |
| Body / wetted materials | Aluminum (ADC-12) |
| Diaphragm material | Hytrel (TPE) |
| Ball material | Hytrel (TPE) |
| Air motor | S-Spool, no pilot valve, oil-free |
| Air inlet | 3/4” Female NPT |
| Air exhaust | 1” Female NPT |
| Port connection | NPT (North America) |
| Repair kit | KG50-MH |
