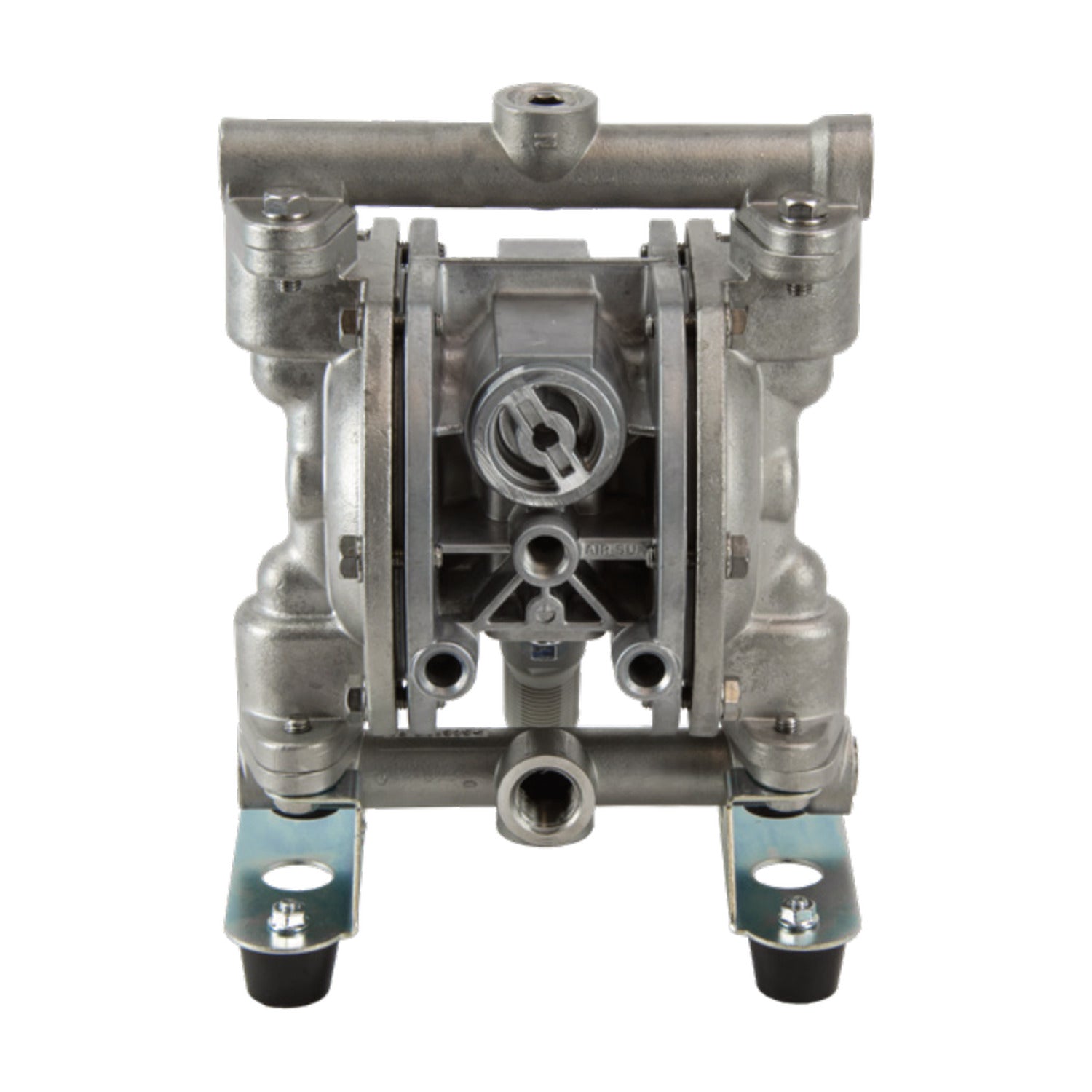

Yamada G15SN11 — 1/2" Stainless Steel Diaphragm Pump, Buna-N Diaphragm
Yamada G15SN11 — 1/2" Stainless Steel Diaphragm Pump, Buna-N Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
Yamada builds the G15SN11 as a 1/2" double-diaphragm pump in stainless steel, capable of 16.6 GPM. It passes solids to 1/32" (1 mm) and handles fluid to 180°F (82°C).
A 316 stainless wetted path resists chlorides, organic acids and most process chemicals, and is the standard specification wherever wash-down or product purity matters. Buna-N diaphragms and balls suit petroleum oils, diesel, hydraulic fluid and greases, but should be kept away from ketones and strong oxidizers. Ball check valves come as standard across the Global Series.
The Global Series air motor uses Yamada's S-Spool valve with no pilot valve and runs completely oil-free, so there are fewer parts to fail and no lubricator to maintain. Being air-driven, it needs no motor starter or electrical classification at the pump, self-primes from dry, and can be dead-headed and left stalled under pressure.
Shipped from Texas with short lead times and strong pricing. If you are unsure which build fits your fluid, send us the application details and we will point you at the right part number.
| Brand | Yamada |
|---|---|
| Model / MPN | G15SN11 |
| Yamada item no. | 854734 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | G15 |
| Port size | 1/2" |
| Maximum flow | 16.6 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 1/32" (1 mm) |
| Displacement per cycle | All diaphragms 0.040-0.050 gal |
| Maximum dry suction lift | 13.5 ft rubber / 11 ft PTFE |
| Maximum fluid temperature | 180°F (82°C) |
| Check valve type | Ball valve (standard on G Series) |
| Body / wetted materials | Stainless Steel (316) |
| Diaphragm material | Buna-N (NBR) |
| Ball material | Buna-N (NBR) |
| Air motor | S-Spool, no pilot valve, oil-free |
| Air inlet | 1/4” Female NPT |
| Air exhaust | 3/8” Female NPT |
| Port connection | NPT (North America) |
| Repair kit | KG15-MN |
