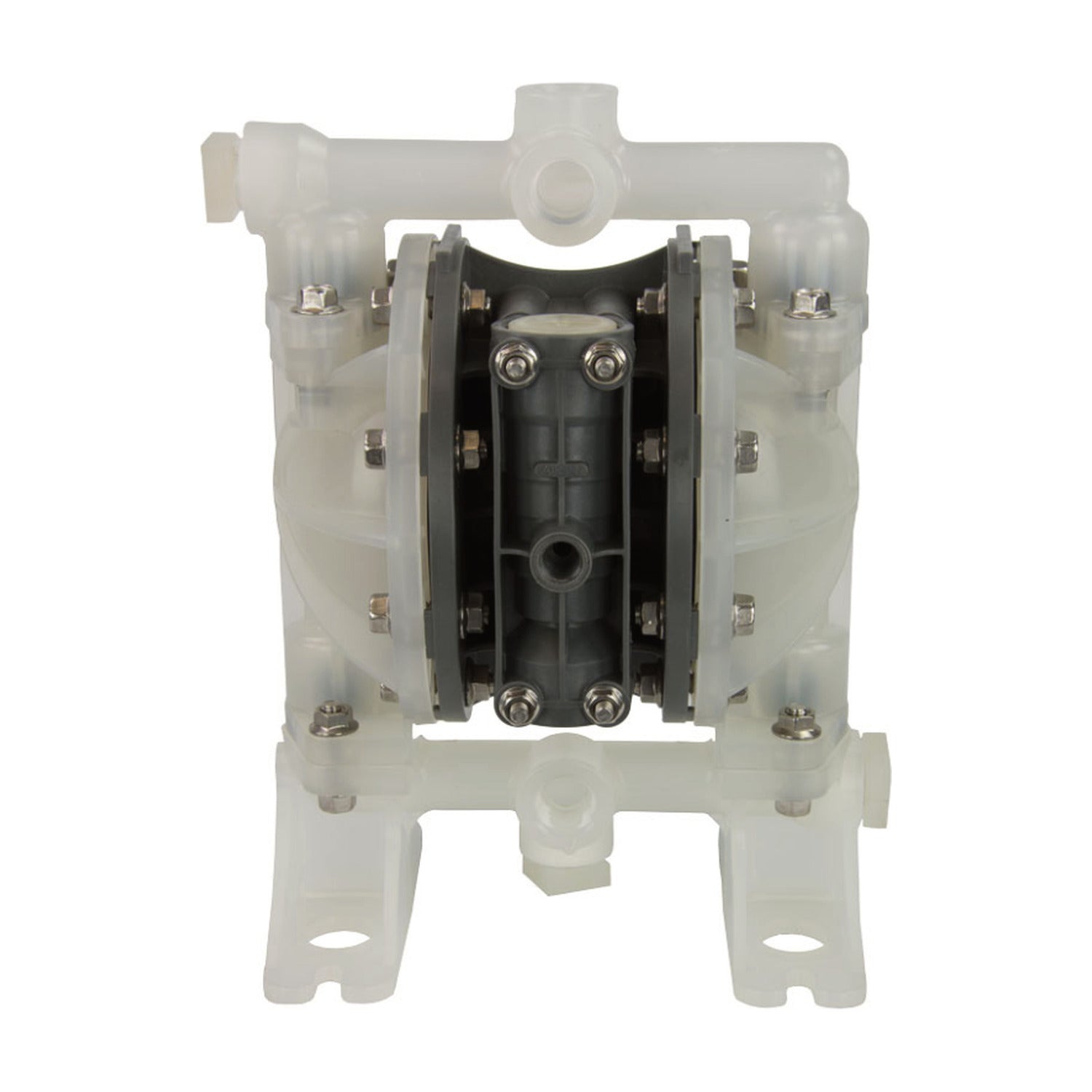

Yamada G15PS11-D — 1/2" Polypropylene Diaphragm Drum Pump, Santoprene Diaphragm
Yamada G15PS11-D — 1/2" Polypropylene Diaphragm Drum Pump, Santoprene Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
The G15PS11-D is Yamada's 1/2" air-operated double-diaphragm pump in polypropylene, with a 16.6 GPM maximum. It passes solids to 1/32" (1 mm) and handles fluid to 180°F (82°C).
Polypropylene construction gives broad resistance to inorganic acids and caustics at a lower cost than fluoropolymer, and it stays inert in the salt and chlorine service that corrodes metal pumps. Santoprene diaphragms and balls offer broad chemical compatibility with a long flex life, and are usually the best value where the duty cycle is heavy. Ball check valves come as standard across the Global Series.
Supplied as a drum-mount package with dip tube and bung adapter. The Global Series air motor uses Yamada's S-Spool valve with no pilot valve and runs completely oil-free, so there are fewer parts to fail and no lubricator to maintain. Air drive means no electrics at the pump, seal-less operation with nothing to leak at a shaft, and safe stalling against a closed discharge.
Shipped from Texas with short lead times and strong pricing. If you are unsure which build fits your fluid, send us the application details and we will point you at the right part number.
| Brand | Yamada |
|---|---|
| Model / MPN | G15PS11-D |
| Yamada item no. | G15PS11-D |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | G15 |
| Port size | 1/2" |
| Maximum flow | 16.6 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 1/32" (1 mm) |
| Displacement per cycle | All diaphragms 0.040-0.050 gal |
| Maximum dry suction lift | 13.5 ft rubber / 11 ft PTFE |
| Maximum fluid temperature | 180°F (82°C) |
| Check valve type | Ball valve (standard on G Series) |
| Body / wetted materials | Polypropylene (PPG) |
| Diaphragm material | Santoprene (TPO) |
| Ball material | Santoprene (TPO) |
| Air motor | S-Spool, no pilot valve, oil-free |
| Air inlet | 1/4” Female NPT |
| Air exhaust | 3/8” Female NPT |
| Port connection | NPT (North America) |
| Options | Drum pump |
