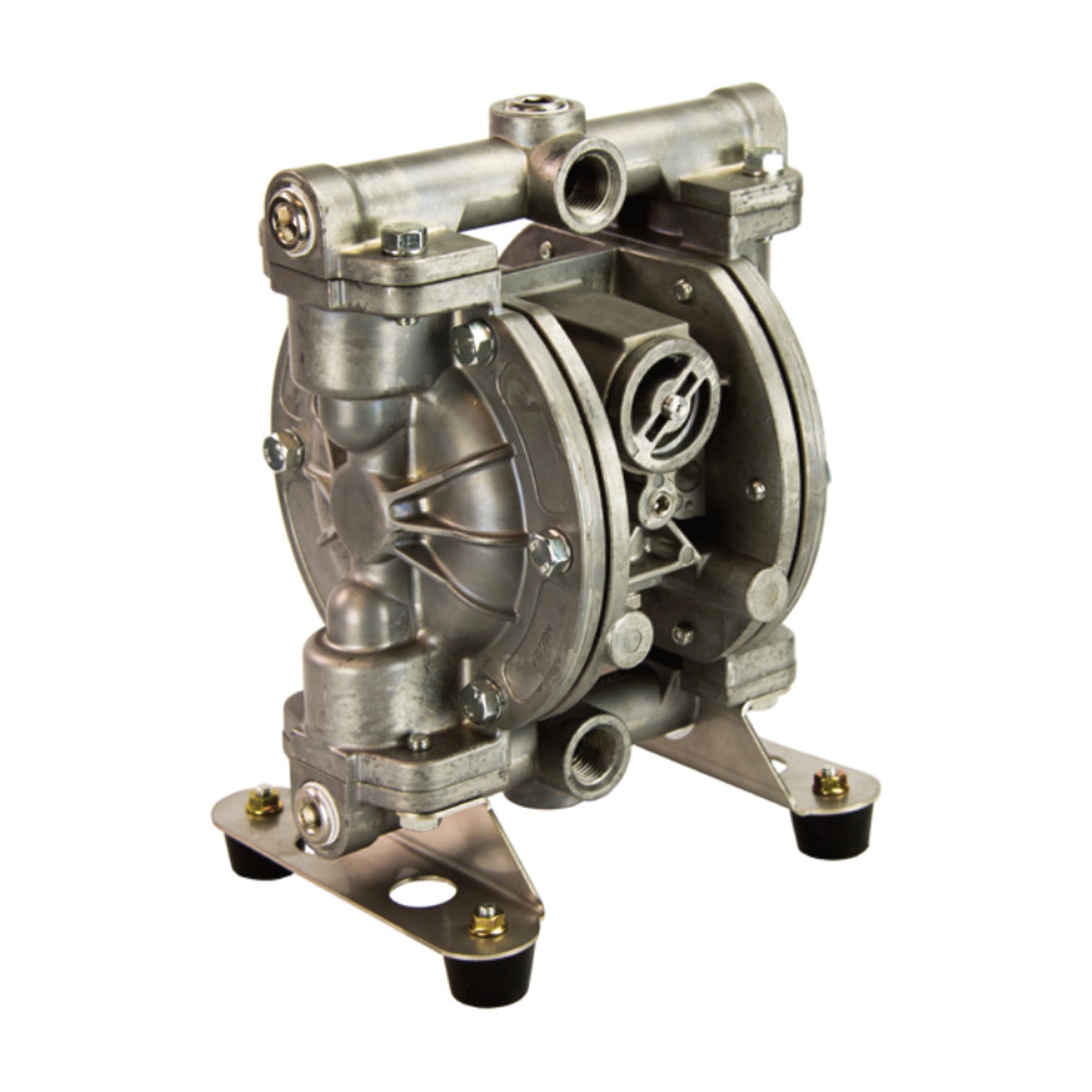

Yamada G15AS-D — 1/2" Aluminum Diaphragm Drum Pump, Santoprene Diaphragm
Yamada G15AS-D — 1/2" Aluminum Diaphragm Drum Pump, Santoprene Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
The G15AS-D covers 1/2" transfer duty as an air-operated double-diaphragm pump in aluminum, rated to 16.6 GPM. It passes solids to 1/32" (1 mm) and handles fluid to 180°F (82°C).
An aluminum wetted path is the workhorse choice for petroleum products, inks, adhesives and machine coolant, giving metal durability without the cost of 316. Santoprene diaphragms and balls offer broad chemical compatibility with a long flex life, and are usually the best value where the duty cycle is heavy. Ball check valves come as standard across the Global Series.
Supplied as a drum-mount package with dip tube and bung adapter. The Global Series air motor uses Yamada's S-Spool valve with no pilot valve and runs completely oil-free, so there are fewer parts to fail and no lubricator to maintain. The pump self-primes, handles a degree of entrained air, and holds pressure when stalled, which makes it forgiving on transfer duty that starts and stops.
Stocked and shipped from Texas with fast dispatch and competitive pricing. Send over your application details if you want the material selection checked before ordering.
| Brand | Yamada |
|---|---|
| Model / MPN | G15AS-D |
| Yamada item no. | G15AS-D |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | G15 |
| Port size | 1/2" |
| Maximum flow | 16.6 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 1/32" (1 mm) |
| Displacement per cycle | All diaphragms 0.040-0.050 gal |
| Maximum dry suction lift | 13.5 ft rubber / 11 ft PTFE |
| Maximum fluid temperature | 180°F (82°C) |
| Check valve type | Ball valve (standard on G Series) |
| Body / wetted materials | Aluminum (ADC-12) |
| Diaphragm material | Santoprene (TPO) |
| Ball material | Santoprene (TPO) |
| Air motor | S-Spool, no pilot valve, oil-free |
| Air inlet | 1/4” Female NPT |
| Air exhaust | 3/8” Female NPT |
| Port connection | not specified |
| Options | Drum pump |
