Hayward 1T4HX0008 Vertical Pump
Hayward 1T4HX0008 Vertical Pump
Create a free account and save 5% on this order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability

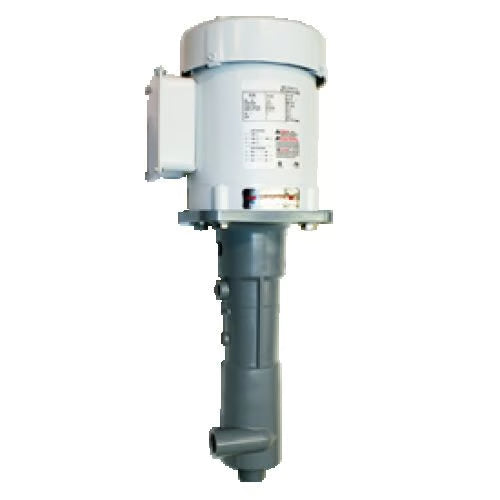

The Hayward 1T4HX0008 is a T Series vertical seal-less immersible pump in CPVC — 1/2 HP, three phase — the T4 frame built for plant power (family performance 5–80 GPM, heads to 45 ft).
It carries the T Series' signature single, non-coupled 303 stainless shaft and patented PTFE shaft seal, with the seal point moved up and away from the weep hole for longer life on aggressive chemicals. CPVC head (Cell Class 23447 per ASTM D1784), 1-1/4" MNPT inlet, 1" FNPT discharge, 208-230/460 V three-phase TEFC motor.
Pick the H build when the installation runs three-phase starters or VFDs. Send us your application details and we'll point you to the right part number.
KAD Pumps & Parts is Texas-based and ships from the US — fast dispatch and US support before you buy.
Specifications
| Brand | Hayward Flow Control (Webster) |
|---|---|
| Model / MPN | 1T4HX0008 (T Series, T4) |
| Pump type | Vertical seal-less immersible centrifugal |
| Construction | CPVC; 303 SS shaft; PTFE shaft seal |
| Horsepower | 1/2 HP |
| Voltage / phase | 208-230/460 V, three phase |
| Inlet / discharge | 1-1/4" MNPT / 1" FNPT |
| Family performance | 5–80 GPM, TDH to 45 ft (60 Hz, 3450 rpm) |
| Motor | TEFC |
Datasheet: Hayward T Series datasheet (PDF)
