Hayward
Hayward 1S4GX0008 Vertical Pumps
Hayward 1S4GX0008 Vertical Pumps
Create a free account and save 5% on this order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability

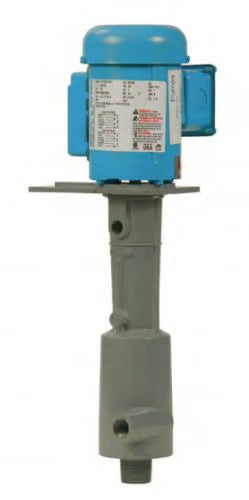

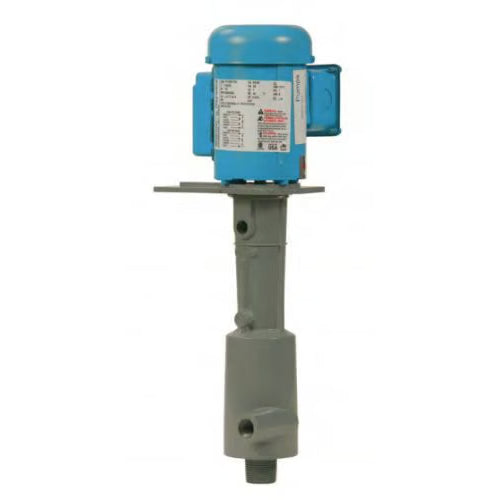

The Hayward 1S4GX0008 is an S Series vertical seal-less immersible pump in CPVC — 1/2 HP, single phase — built for continuous-duty pumping of corrosive chemicals from tanks and sumps.
The seal-less design removes the mechanical shaft seal entirely: nothing to leak, flush, or replace, which is why these pumps live so long on aggressive liquids. The CPVC pump head (Cell Class 23447 per ASTM D1784) and FPM elastomers handle a wide range of acids and corrosives, driven by a 115/230 V TEFC motor with 1-1/4" suction and 1" discharge.
A solid fit for plating lines, scrubber recirculation, and chemical transfer out of day tanks. Send us your application details and we'll point you to the right part number.
KAD Pumps & Parts is Texas-based and ships from the US — fast dispatch and US support before you buy.
Specifications
| Brand | Hayward Flow Control (Webster) |
|---|---|
| Model / MPN | 1S4GX0008 (S Series, S4) |
| Pump type | Vertical seal-less immersible centrifugal |
| Construction | CPVC (Cell Class 23447, ASTM D1784) |
| Elastomers | FPM |
| Horsepower | 1/2 HP |
| Voltage / phase | 115/230 V, single phase |
| Suction / discharge | 1-1/4" / 1" |
| Motor | TEFC |
| Weight | ~31 lb |
Datasheet: Hayward S Series datasheet (PDF)
