Ebara EPD-5AS1 Pro Drainer Submersible Pump
Ebara EPD-5AS1 Pro Drainer Submersible Pump
Create a free account and save 5% on this order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability

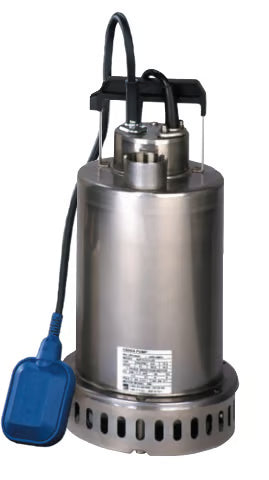

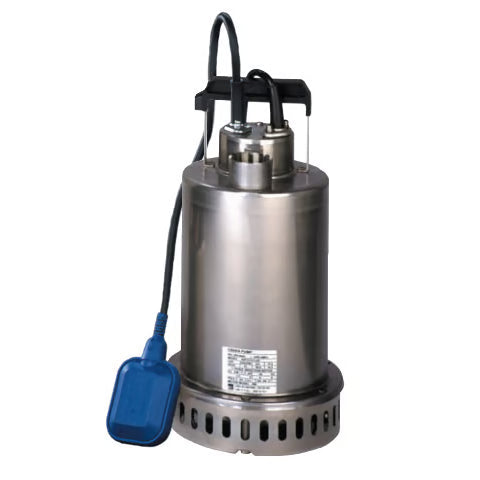

The Ebara EPD-5AS1 is a 1/2 HP Pro Drainer submersible pump in 304 stainless steel with automatic float-switch operation — 115 V single phase — for slurry and semi-dirty water.
All major components are 304 stainless (casing, impeller, motor frame, fasteners) with a 303 stainless shaft, semi-open impeller passing 3/8" solids, and a double mechanical seal. The air-filled, continuous-duty motor has built-in overload protection with auto reset; the mechanical (non-mercury) float switch starts and stops the pump with level. Performance reaches roughly 66 GPM at 5 ft, working to about 30 ft of head; 1-1/2" NPT discharge, 20 ft cord, 26 lb. UL and CSA listed.
A set-and-forget choice for sumps, pits, and process drainage on corrosive or gritty water. Send us your application details and we'll confirm the right model.
KAD Pumps & Parts is Texas-based and ships from the US — fast dispatch and US support before you buy.
Specifications
| Brand | Ebara |
|---|---|
| Model / MPN | EPD-5AS1 (Pro Drainer) |
| Pump type | Submersible drainage pump, automatic (float switch) |
| Horsepower | 1/2 HP, 115 V, 1-phase, 9.0 A |
| Discharge | 1-1/2" NPT |
| Construction | 304 SS casing/impeller/motor frame; 303 SS shaft |
| Seal | Double mechanical seal |
| Solids handling | 3/8" spherical (2% concentration) |
| Max liquid temp | 122°F / 50°C (140°F intermittent) |
| Performance | ~66 GPM @ 5 ft; ~17 GPM @ 30 ft |
| Cord | 20 ft |
| Weight | 26 lb |
| Listings | UL, CSA |
Datasheet: Ebara EPD/Optima technical data (PDF)
