Ebara EPD-3MS1 Pro Drainer Submersible Pump
Ebara EPD-3MS1 Pro Drainer Submersible Pump
Create a free account and save 5% on this order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability

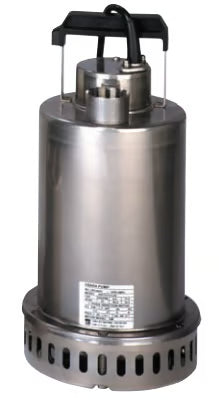

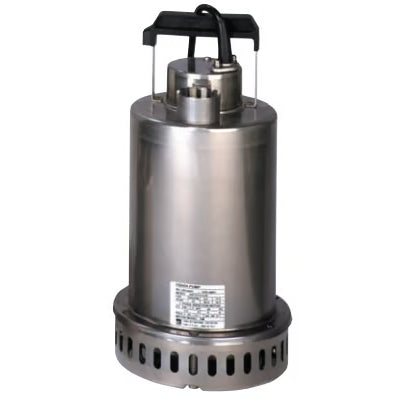

The Ebara EPD-3MS1 is a 1/3 HP Pro Drainer submersible pump in 304 stainless steel — manual operation, 115 V single phase — for slurry and semi-dirty water drainage.
The casing, impeller, motor frame, and fasteners are all 304 stainless, with a 303 stainless shaft and semi-open impeller that passes 3/8" spherical solids. The air-filled, continuous-duty motor carries built-in overload protection with automatic reset and a 20 ft cord with piggy-back plug. Performance reaches roughly 45 GPM at 5 ft of head, with liquid temperatures to 122°F (140°F intermittent). UL and CSA listed.
Right for sump and dewatering duty where corrosion eats cast-iron pumps. Pair with a separate control if you need automatic operation, or see the float-switch A models. Send us your application details and we'll point you to the right model.
KAD Pumps & Parts is Texas-based and ships from the US — fast dispatch and US support before you buy.
Specifications
| Brand | Ebara |
|---|---|
| Model / MPN | EPD-3MS1 (Pro Drainer) |
| Pump type | Submersible drainage pump, manual operation |
| Horsepower | 1/3 HP, 115 V, 1-phase, 4.4 A |
| Discharge | 1-1/4" NPT |
| Construction | 304 SS casing/impeller/motor frame; 303 SS shaft |
| Impeller | Semi-open, stainless steel |
| Solids handling | 3/8" spherical (2% concentration) |
| Max liquid temp | 122°F / 50°C (140°F intermittent) |
| Performance | ~45 GPM @ 5 ft; ~20 GPM @ 20 ft |
| Cord | 20 ft with piggy-back plug |
| Weight | 11 lb |
| Listings | UL, CSA |
Datasheet: Ebara EPD/Optima technical data (PDF)
