Pulsafeeder Chem-Tech X068-XA-AAAAXXX Metering Pump
Pulsafeeder Chem-Tech X068-XA-AAAAXXX Metering Pump
Create a free account and save 5% on this order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability

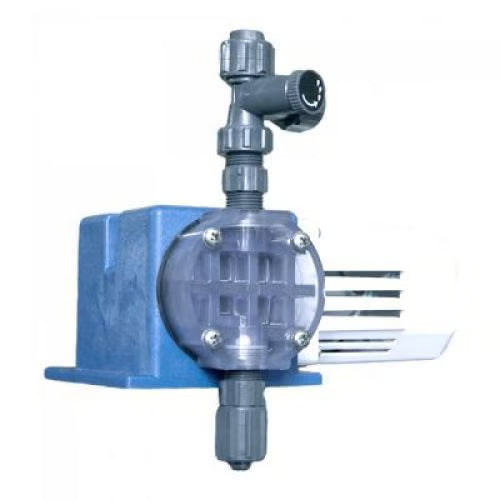

The Pulsafeeder Chem-Tech X068-XA-AAAAXXX is a Series 150 mechanical diaphragm metering pump — 68 GPD maximum at up to 60 psi, 115 V — built on the Series 100 platform with higher flow capacity.
The motorized-diaphragm drive and sealed gearbox handle continuous duty quietly, with knob-and-lock feed-rate control. Liquid end: clear SAN/PVC head, CSPE seats/o-rings, ceramic ball, guided quad check valves, standard bleed valve, and 0.44" PVC suction / 0.50" PE discharge tubing. Self-priming; max 125°F and 300 cps; ETL listed, conforms to ANSI/NSF Std 50.
The right step up when 30 GPD isn't enough — larger pools, cooling towers, and commercial water systems at moderate injection pressures. Send us your application details and we'll point you to the right model.
KAD Pumps & Parts is Texas-based and ships from the US — fast dispatch and US support before you buy.
Specifications
| Brand | Pulsafeeder (Chem-Tech) |
|---|---|
| Model / MPN | X068-XA-AAAAXXX (Series 150) |
| Pump type | Mechanical diaphragm metering pump |
| Max flow | 68 GPD (10.72 lph) |
| Max pressure | 60 psi (4 bar) |
| Liquid end | SAN/PVC head, CSPE seats/o-rings, ceramic ball |
| Tubing | 0.44" PVC suction, 0.50" PE discharge |
| Power | 115 V, 60 Hz |
| Max temp / viscosity | 125°F / 300 cps |
| Listings | ETL; conforms to ANSI/NSF Std 50 |
Datasheet: Pulsafeeder Chem-Tech Series 100/150 tech sheet (PDF)
