Pulsafeeder Chem-Tech X024-XA-AAACXXX Metering Pump
Pulsafeeder Chem-Tech X024-XA-AAACXXX Metering Pump
Create a free account and save 5% on this order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability

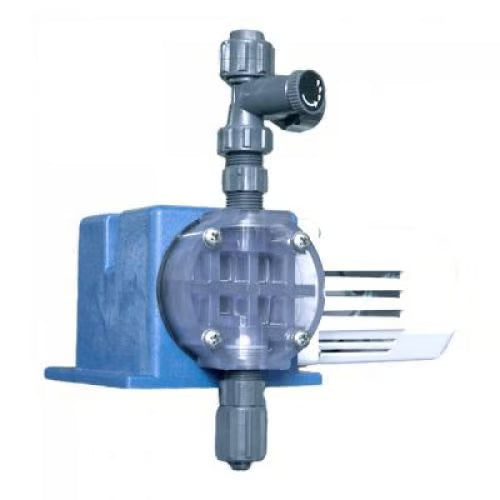

The Pulsafeeder Chem-Tech X024-XA-AAACXXX is a Series 100 mechanical diaphragm metering pump — 24 GPD maximum at up to 100 psi, 115 V — in the PVC-head liquid-end option with 0.38" tubing.
The sealed-gearbox motorized-diaphragm drive gives quiet, repeatable dosing with knob-and-lock feed-rate control. Per the liquid-end code, this build runs a PVC head with CSPE seats/o-rings and ceramic ball, guided quad check valves, a standard bleed valve, and 0.38" PVC suction / PE discharge tubing. Self-priming; max 125°F and 300 cps; ETL listed, conforms to ANSI/NSF Std 50. PVC wetted ends are the recommended pick for sodium hypochlorite.
Send us your application details and we'll confirm the liquid-end fit before you order.
KAD Pumps & Parts is Texas-based and ships from the US — fast dispatch and US support before you buy.
Specifications
| Brand | Pulsafeeder (Chem-Tech) |
|---|---|
| Model / MPN | X024-XA-AAACXXX (Series 100) |
| Pump type | Mechanical diaphragm metering pump |
| Max flow | 24 GPD (3.78 lph) |
| Max pressure | 100 psi (7 bar) |
| Liquid end | PVC head, CSPE seats/o-rings, ceramic ball (per liquid-end code) |
| Tubing | 0.38" PVC suction / PE discharge |
| Power | 115 V, 60 Hz |
| Max temp / viscosity | 125°F / 300 cps |
| Listings | ETL; conforms to ANSI/NSF Std 50 |
Datasheet: Pulsafeeder Chem-Tech Series 100/150 tech sheet (PDF)
