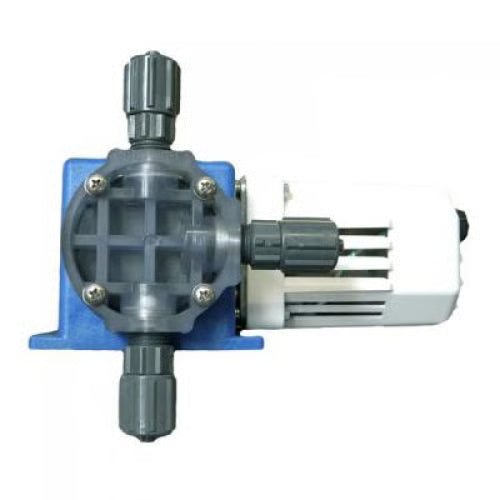

Pulsafeeder Chem-Tech X030-XC-BBA9XXX Metering Pump
Pulsafeeder Chem-Tech X030-XC-BBA9XXX Metering Pump
Create a free account and save 5% on this order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability
The Pulsafeeder Chem-Tech X030-XC-BBA9XXX is a Series 100 mechanical diaphragm metering pump — 30 GPD maximum at up to 100 psi, 230 V — with an FKM (Viton-type) elastomer liquid end.
The motorized-diaphragm drive and sealed gearbox give quiet, consistent metering, with simple knob-and-lock feed-rate adjustment. This build pairs a PVC head with FKM seats/o-rings and a ceramic ball — the elastomer choice for many acids and oxidizer services where CSPE falls short — with 0.50" tubing and a standard bleed valve. Self-priming; max 125°F and 300 cps.
Verify FKM compatibility against your specific chemical, and send us your application details — we'll point you to the right liquid-end code.
KAD Pumps & Parts is Texas-based and ships from the US — fast dispatch and US support before you buy.
Specifications
| Brand | Pulsafeeder (Chem-Tech) |
|---|---|
| Model / MPN | X030-XC-BBA9XXX (Series 100) |
| Pump type | Mechanical diaphragm metering pump |
| Max flow | 30 GPD (4.72 lph) |
| Max pressure | 100 psi (7 bar) |
| Liquid end | PVC head, FKM seats/o-rings, ceramic ball |
| Tubing | 0.50" |
| Power | 230 V |
| Max temp / viscosity | 125°F / 300 cps |
| Listings | ETL; conforms to ANSI/NSF Std 50 |
Datasheet: Pulsafeeder Chem-Tech Series 100/150 tech sheet (PDF)
