Grundfos 99159458 DDA Dosing Pump
Grundfos 99159458 DDA Dosing Pump
Create a free account and save 5% on this order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability

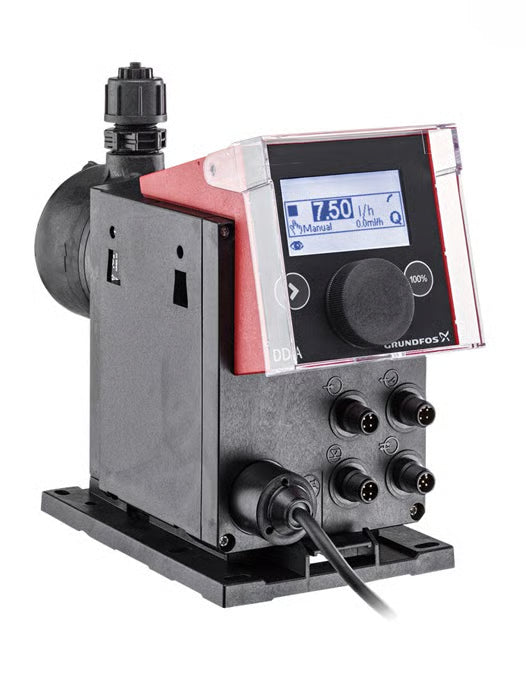

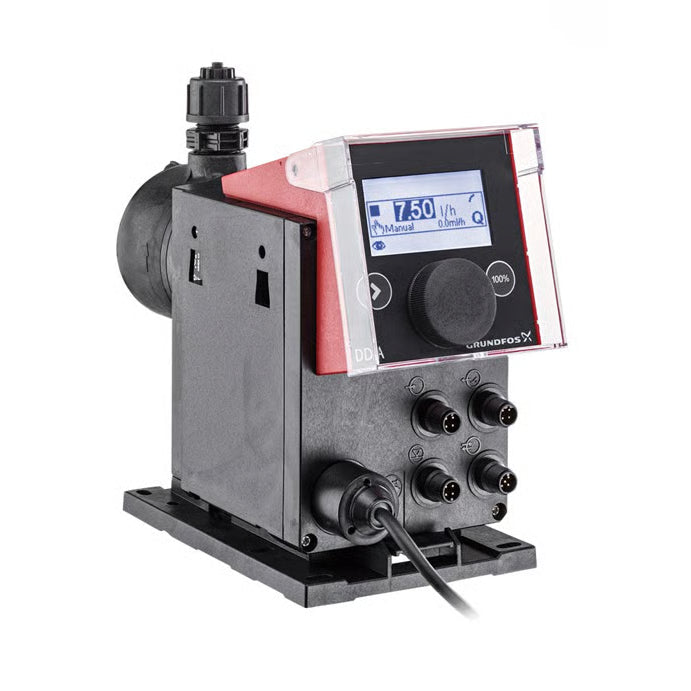

The Grundfos 99159458 is a SMART Digital XL DDA 60-10 dosing pump rated for 60 l/h (15.85 GPH) at up to 10 bar (145 psi), in the AR control variant.
Type key DDA 60-10 AR-PV/V/C-F-31A7A7BG: PVDF dosing head, FKM gasket, ceramic valve ball, PTFE diaphragm, with 3/4" x 3/4" NPT male connections. AR control provides digital dosing with alarm relay and analog input — the right interface when a plant controller or SCADA loop commands the dose rate and on-pump flow measurement isn't needed. Setting range up to 1:800; universal 100–240 V, 60 Hz single-phase supply.
A dependable high-capacity metering pump for acid feed and general chemical injection under external control. Send us your application details and we'll point you to the right part number.
KAD Pumps & Parts is Texas-based and ships from the US — fast dispatch, straightforward ordering, and US support before you buy.
Specifications
| Brand | Grundfos |
|---|---|
| Model / MPN | 99159458 (DDA 60-10 AR-PV/V/C-F-31A7A7BG) |
| Pump type | Digital diaphragm dosing (metering) pump |
| Max flow | 60 l/h (15.85 GPH) |
| Max pressure | 10 bar (145 psi) |
| Control variant | AR — alarm relay + analog input |
| Dosing head | PVDF |
| Gasket | FKM |
| Valve ball | Ceramic |
| Diaphragm | PTFE |
| Connection | 3/4" x 3/4" NPT male |
| Setting range | Up to 1:800 (XL platform) |
| Power | 100–240 V, 60 Hz, 1-phase |
Datasheet: Grundfos SMART Digital XL (DDA 60–200) data booklet (PDF)
