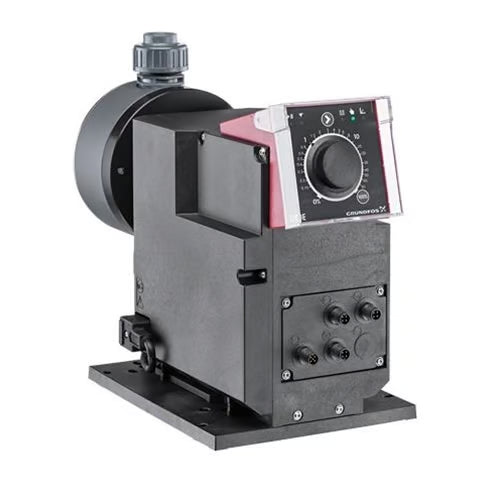

Grundfos 97721060 DDE Dosing Pump
Grundfos 97721060 DDE Dosing Pump
Create a free account and save 5% on this order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability
The Grundfos 97721060 is a SMART Digital DDE 6-10 diaphragm dosing pump rated for 6 l/h (1.6 GPH) at up to 10 bar (145 psi), in the Basic control variant with installation kit.
The liquid end pairs a PVC dosing head with an EPDM gasket, ceramic valve ball, and standard valve. Basic (B) control keeps operation simple: set the dose rate on the click-stop dial and run. The included installation kit comes with 0.17" x 0.14" hose for suction and discharge hookup. The stepper-driven, full-stroke dosing motion handles off-gassing chemicals such as hypochlorite more reliably than entry-level solenoid pumps. Universal 100–240 V, 50/60 Hz single-phase supply.
Right for simple, set-and-forget chemical feed at small flows. Send us your application details and we'll point you to the right part number.
KAD Pumps & Parts is Texas-based and ships from the US — fast dispatch, straightforward ordering, and US support before you buy.
Specifications
| Brand | Grundfos |
|---|---|
| Model / MPN | 97721060 (DDE 6-10 B, PVC/EPDM/Ceramic) |
| Pump type | Digital diaphragm dosing (metering) pump |
| Max flow | 6 l/h (1.6 GPH) |
| Max pressure | 10 bar (145 psi) |
| Control variant | B — Basic (manual click-stop dial) |
| Dosing head | PVC |
| Gasket | EPDM |
| Valve ball | Ceramic |
| Connection | Installation kit, 0.17" x 0.14" hose, standard valve |
| Power | 100–240 V, 50/60 Hz, 1-phase |
Datasheet: Grundfos SMART Digital S (DDA/DDC/DDE) data booklet (PDF)
