Grundfos 93065175 DDA-C Dosing Smart Digital S Pump
Grundfos 93065175 DDA-C Dosing Smart Digital S Pump
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability

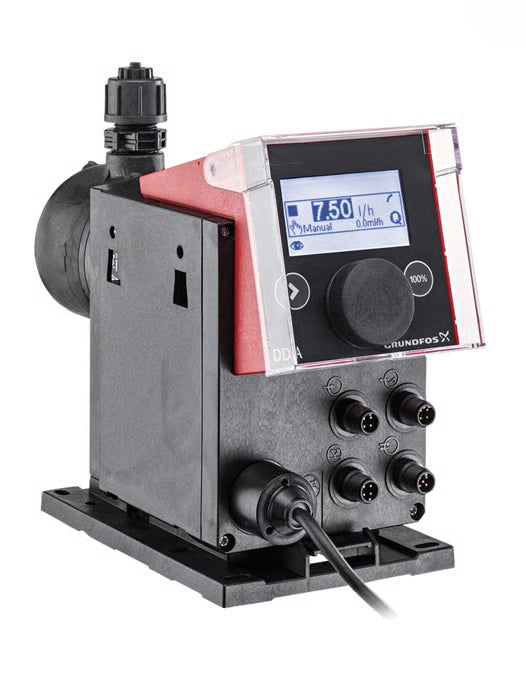

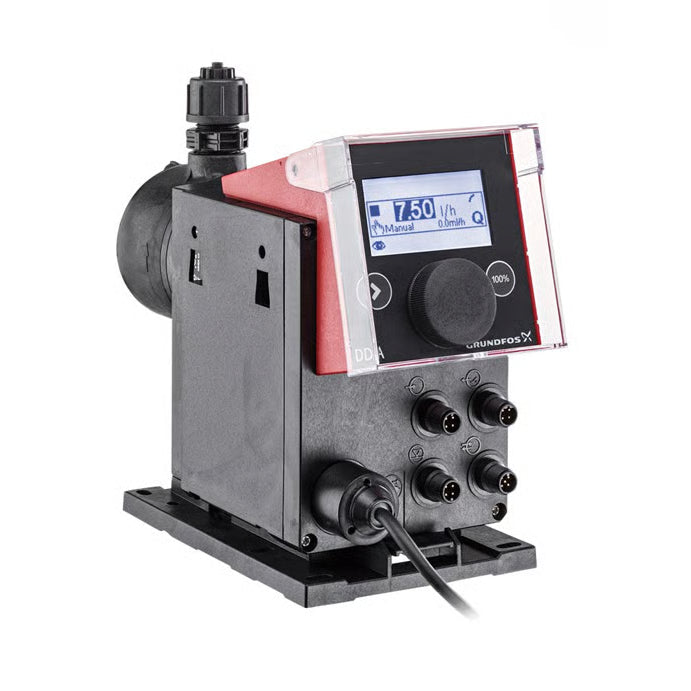

The Grundfos 93065175 is a SMART Digital S DDA 7.5-16 diaphragm dosing pump rated for 7.5 l/h (2.0 GPH) at up to 16 bar (232 psi), configured for fluoride feed applications.
Type key DDA 7.5-16 AR-PV/V/C-F-31U7U7BG: PVDF dosing head for broader chemical resistance, FKM gasket, ceramic valve ball, and PTFE diaphragm, with the AR control variant — alarm relay and analog input control. The stepper-motor drive gives a setting range up to 1:3000. Ships with the installation set: 2 pump connections, foot valve, injection unit, 6 m PE discharge tube, 2 m PVC suction tube, and 2 m PVC vent tube (4/6 mm).
A good fit where the dosed chemical calls for a PVDF wetted path and the control system provides external analog/relay signals. Send us your application details and we'll point you to the right part number.
KAD Pumps & Parts is Texas-based and ships from the US — fast dispatch, straightforward ordering, and US support before you buy.
Specifications
| Brand | Grundfos |
|---|---|
| Model / MPN | 93065175 (DDA 7.5-16 AR-PV/V/C-F-31U7U7BG) |
| Pump type | Digital diaphragm dosing (metering) pump |
| Max flow | 7.5 l/h (2.0 GPH) |
| Max pressure | 16 bar (232 psi) |
| Control variant | AR — alarm relay + analog input |
| Dosing head | PVDF |
| Gasket | FKM |
| Valve ball | Ceramic |
| Diaphragm | PTFE |
| Setting range | Up to 1:3000 |
| Power | 100–240 V, 50/60 Hz, 1-phase |
| Included | Installation set (connections, foot valve, injection unit, discharge/suction/vent tubing) |
Datasheet: Grundfos SMART Digital S (DDA/DDC/DDE) data booklet (PDF)
