Grundfos 93065137 DDA-C Dosing Smart Digital S Pump
Grundfos 93065137 DDA-C Dosing Smart Digital S Pump
Create a free account and save 5% on this order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability

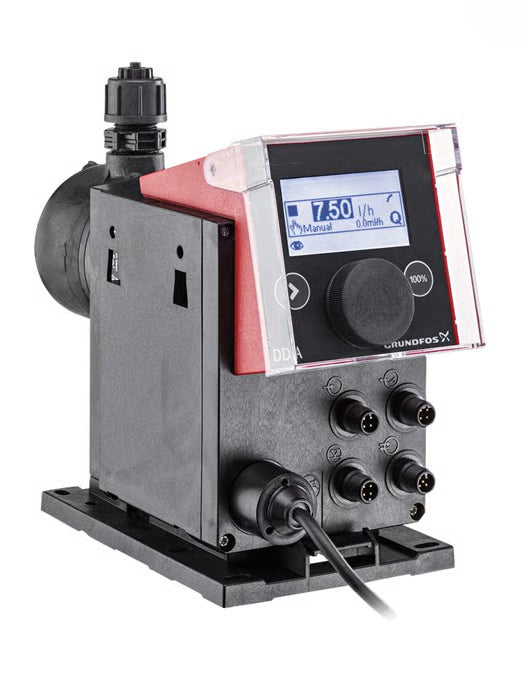

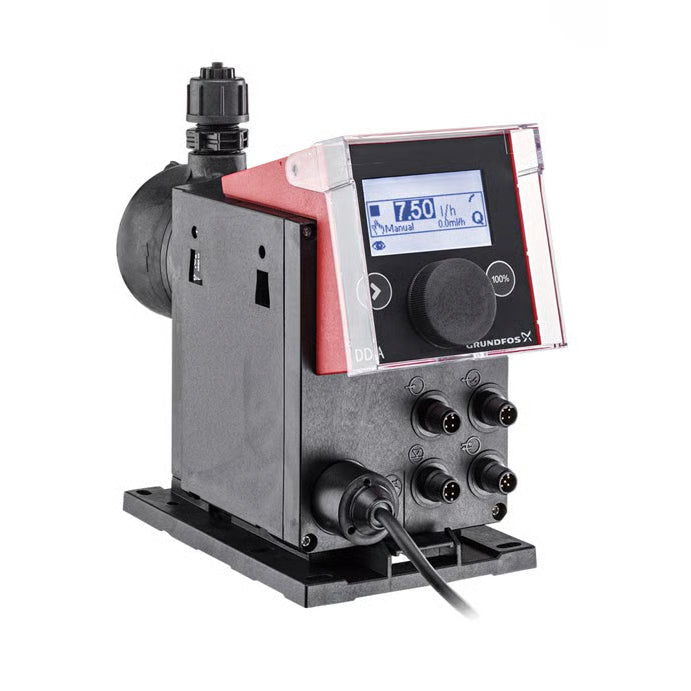

The Grundfos 93065137 is a SMART Digital S DDA 7.5-16 diaphragm metering pump, a stepper-motor dosing pump rated to 7.5 l/h (2 GPH) at up to 16 bar (232 psi). It is designed for accurate low-flow chemical dosing in water treatment and process applications.
This build uses a polypropylene (PP) dosing head with an EPDM gasket, ceramic valve balls, and a PTFE diaphragm — the same wetted family preferred for fluoride and similar chemistries where polypropylene compatibility is wanted. The variable-speed stepper motor provides a turndown ratio up to 1:3000 for smooth, continuous dosing across a wide flow range.
It is a good fit where PP and EPDM match your chemical and you need precise low-flow metering. If you want to confirm wetted-material compatibility or the exact connection set for your install, send us your application details and we will point you to the right part number.
KAD is Texas-based and ships from the US, with US support before you buy — short lead times and simple online ordering.
Specifications
| Brand | Grundfos |
| Model / MPN | DDA 7.5-16 / 93065137 |
| Type | SMART Digital S diaphragm dosing/metering pump (stepper motor) |
| Max flow | 7.5 l/h (2 GPH) |
| Max pressure | 16 bar (232 psi) |
| Turndown ratio | Up to 1:3000 |
| Dosing head | Polypropylene (PP) |
| Diaphragm | PTFE |
| Gasket | EPDM |
| Valve balls | Ceramic |
| Power supply | 100–240 V, 50/60 Hz, single phase |
Datasheet: Grundfos SMART Digital S DDA, DDC, DDE (up to 30 l/h) — data booklet (PDF)
