Grundfos 93064957 DDA-C Dosing Smart Digital S Pump
Grundfos 93064957 DDA-C Dosing Smart Digital S Pump
Create a free account and save 5% on this order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability

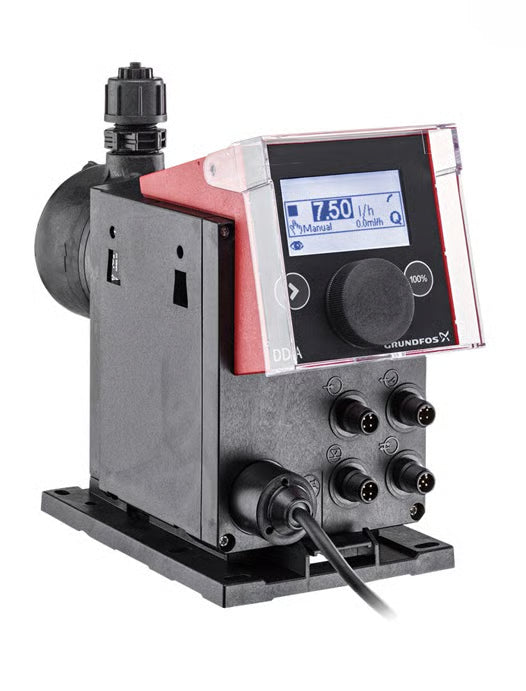

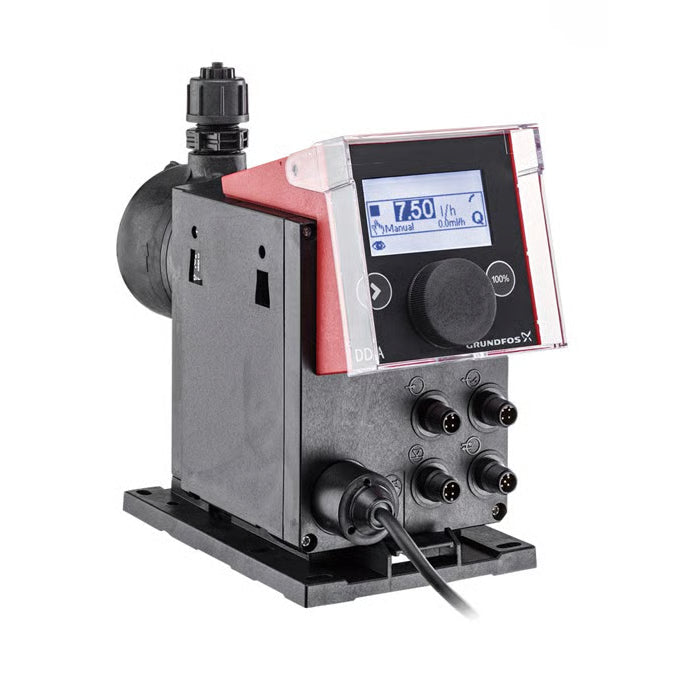

The Grundfos 93064957 is a SMART Digital S DDA 7.5-16 diaphragm dosing pump rated for 7.5 l/h (2.0 GPH) at up to 16 bar (232 psi), built for precise chemical metering in water treatment — this build is configured for fluoride feed applications.
Type key DDA 7.5-16 FCM-PVC/V/C-F-31U7U7BG: PVC dosing head, FKM (Viton-type) gasket, ceramic valve ball, and a PTFE diaphragm, with the FCM control variant — flow control and integrated flow measurement plus alarm relay and analog input. The stepper-motor drive gives a setting range up to 1:3000, so one pump covers a wide dosing window without changing liquid ends. Ships with the installation set: 2 pump connections, foot valve, injection unit, 6 m PE discharge tube, 2 m PVC suction tube, and 2 m PVC vent tube (4/6 mm). This part number supersedes the earlier Grundfos 97722437.
Right for municipal and industrial fluoride or chemical feed where verified dosing accuracy matters. Send us your application details and we'll point you to the right part number.
KAD Pumps & Parts is Texas-based and ships from the US — fast dispatch, straightforward ordering, and US support before you buy.
Specifications
| Brand | Grundfos |
|---|---|
| Model / MPN | 93064957 (DDA 7.5-16 FCM-PVC/V/C-F-31U7U7BG) |
| Pump type | Digital diaphragm dosing (metering) pump |
| Max flow | 7.5 l/h (2.0 GPH) |
| Max pressure | 16 bar (232 psi) |
| Control variant | FCM — flow control & measurement, alarm relay, analog input |
| Dosing head | PVC |
| Gasket | FKM |
| Valve ball | Ceramic |
| Diaphragm | PTFE |
| Setting range | Up to 1:3000 |
| Power | 100–240 V, 50/60 Hz, 1-phase |
| Included | Installation set (connections, foot valve, injection unit, discharge/suction/vent tubing) |
Datasheet: Grundfos SMART Digital S (DDA/DDC/DDE) data booklet (PDF)
Browse all chemical metering & dosing pumps, or all pumps, at KAD.
