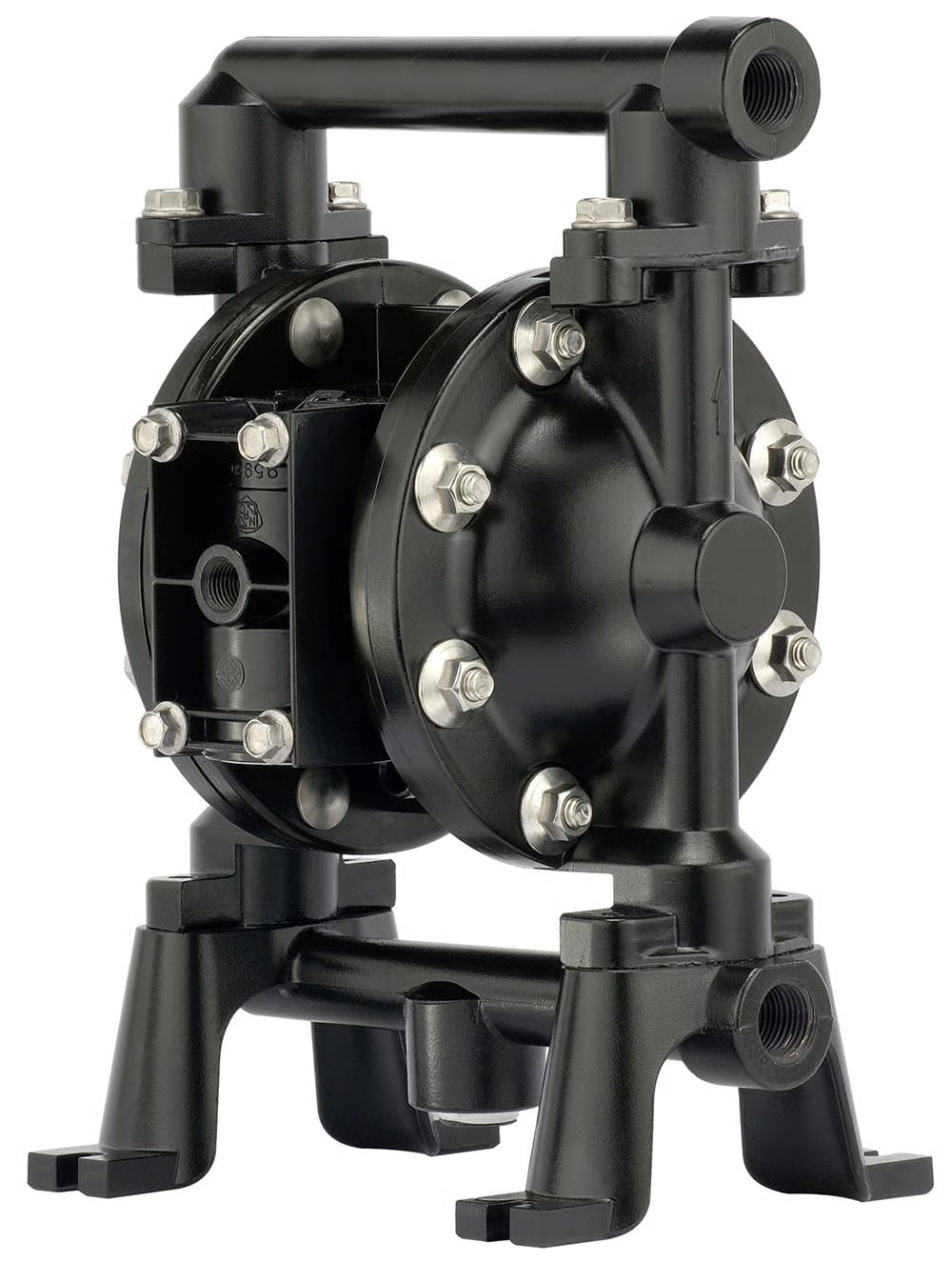

ARO PD05A-AAS-FCC-B — 1/2" Aluminum Diaphragm Pump, Hytrel Diaphragm
ARO PD05A-AAS-FCC-B — 1/2" Aluminum Diaphragm Pump, Hytrel Diaphragm
Create a free account and save 5% on this order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability
The ARO PD05A-AAS-FCC-B is a 1/2" air-operated double-diaphragm (AODD) pump from ARO's compact 1/2" metallic series — self-priming, run-dry capable, and rated to about 12 GPM on compressed air up to 100 psi.
This build pairs Aluminum fluid caps and manifold with Aluminum seats, Hytrel check balls and Hytrel diaphragms. Hytrel offers strong abrasion resistance and resilience for solvent and abrasive transfer where softer rubber elastomers wear out quickly. Bolted construction keeps the fluid path leak-tight, and ARO's patented unbalanced air valve is designed to resist stalling and ice-up.
It is a sensible fit for general transfer in water treatment, wastewater, chemical feed and industrial maintenance. Not sure this build suits your fluid? Send us your application details and we'll point you to the right part number.
KAD is a Texas-based seller — order online, ship from the US with a short lead time, and reach US-based support if you have a sizing or compatibility question before you buy.
Specifications
| Brand | ARO (Ingersoll Rand) |
| Model / MPN | PD05A-AAS-FCC-B |
| Pump type | Air-operated double diaphragm (AODD) |
| Port / inlet size | 1/2 in |
| Max flow | 12.0 GPM (45.4 LPM) |
| Max fluid pressure | 100 psi (6.9 bar) |
| Max air inlet pressure | 100 psi (6.9 bar) |
| Solids handling | 3/32 in (2.4 mm) |
| Diaphragm material | Hytrel |
| Ball (check valve) material | Hytrel |
| Seat material | Aluminum |
| Fluid caps & manifold | Aluminum |
| Max fluid temperature | Up to 180°F (82°C) — limited by the Hytrel wetted path |
| Sound level | ~75.0 dB(A) |
| Weight | ~10.4 lb (4.7 kg) |
| Displacement | 0.039 gal (0.15 L) per cycle |
Datasheet: ARO PD05A / PD05R-XXS-XXX-B — Sales & Engineering Data (PDF)
